Home > Products > Others > CE Certificate Machine KX5188-A45 HF Induction Melting Furnace Quality Choice

CE Certificate Machine KX5188-A45 HF Induction Melting Furnace Quality Choice

FOB Price

US$ 2,780 - 2,980 / Set

1 Set(Min. Order)

Port Any port of China
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Induction Furnace
Usage	Other, Heat Treatment Furnace, melting,welding,hardening,annealing,forging and other heat treatment	Place of Origin	Zhejiang, China
Brand Name	KEXIN	Model Number	KX-5188A45
Voltage	380V	Power(W)	45KVA
Dimension(LWH)	660290410mm 740340380mm	Weight	60Kg(Net Weight)
Certification	CE	Warranty	One Year
After-sales Service Provided	Overseas third-party support available

Product Description

CE certificate machine KX5188-A45 HF induction melting furnace

Technical Features

Based on the principle of electromagnetic induction,our machine could make induced current generate inside the metal material,which is in the alternating magnetic field.Then this current could heat the material up to the melting state.

High frequency circuit are all worked as following:

Technical Parameters

Model	KX-5188A45
Rated Power output	45 KVA
Frequency rang	30-80 KHz
Three- phase input	Three-phase 380V /50HZ
Current input	5-55A
Efficiency	95%
Duty cycle	100%
Volume(mm 3)	660 mmx290mmx410mm 740 mmx340mmx380mm
Net Weight	65KG
Gross weight	80KG
Cooling water flow	hydraulic pressure≥0.2MPa,flow rate:5-20L/Min
Cooling water temperature	≤ 40°C
Waterway of power supply	Control box: 2 inlets ,2 outlets
Application	Quenching, annealing, conditioning saw blades, drill, turning welding standard parts of axial etc fastener local heating, forging, melting, high frequency induction heating equipment.

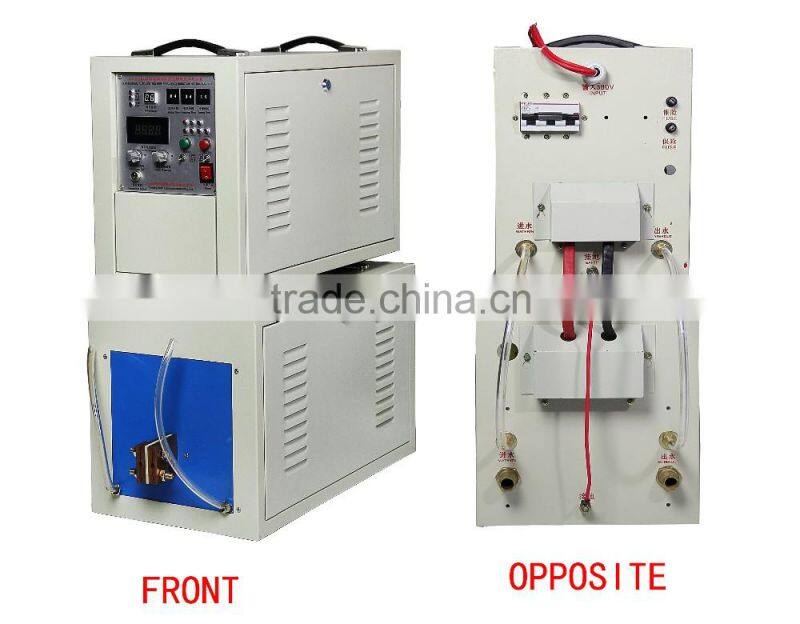

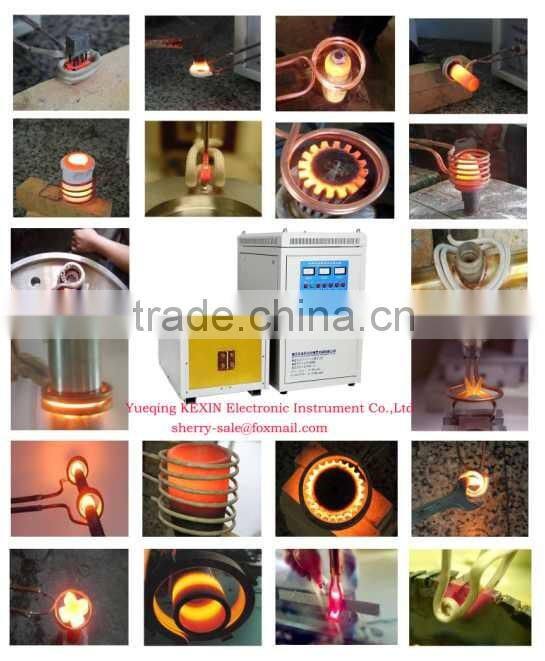

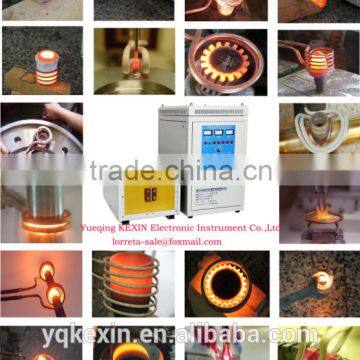

Photo of China top supplier factory price KX5188-A45 high frequency induction quenching furnace

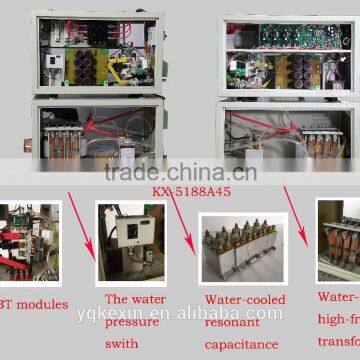

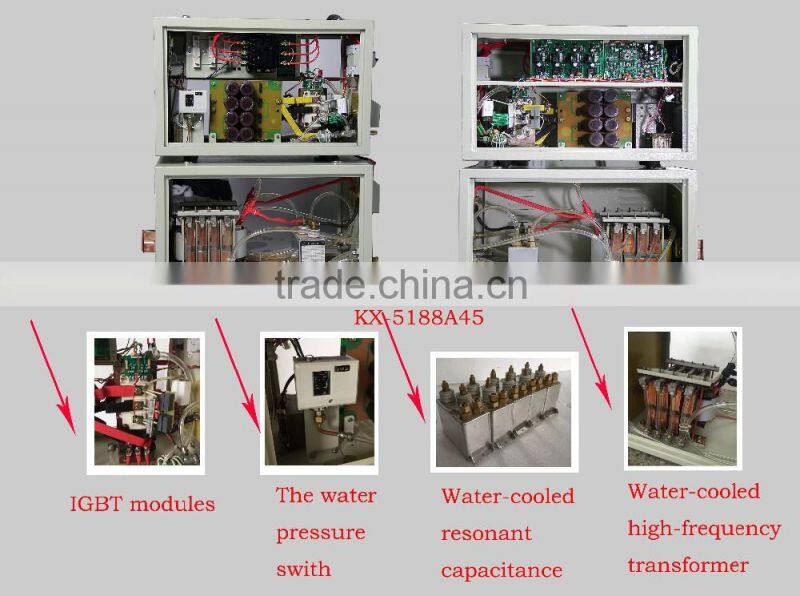

Main Parts Introduction

1) Germany SIEMENS INFINEON IGBT Module(40-60KHZoscillation frequency,fast response time, high arcstability, almost spatter-free welding)

2) Japan Nichicon electrolytic capacitor(filter capacitor)

3)signal circuit, drive circuit board ,control circuit board and components are adopted:Toshiba, Hitachi,Motorola,China's top manufacturers

4)international advanced all-solid-state semiconductor power devices

5)imported transistor integrated block

6)high speed control tube

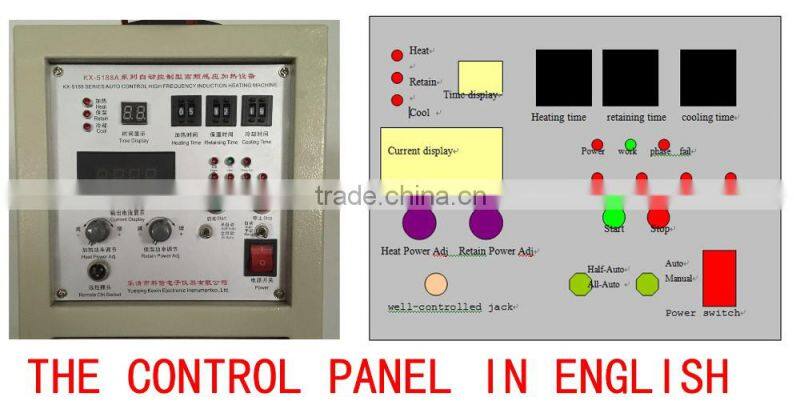

7)with perfect control,protection,alarm display circuit,machine could get full automatic tracking frequency, continuous adjustable power,safe and dependable protection,clear and accur data display and etc technical advantage

8)accoeding to the frequency and power,we offer various model of different types and design.

9) Superiority :fast heating,wide application,protable volume,easy installation,simple operation

10)Wide applicated to different kind of workpiece melting,annealing,welding,quenching,forging,hardening and other heat treatment

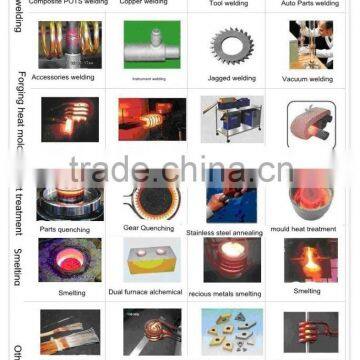

Application range:

Heat Treatment (surface hardening, quenching, annealing, tempering)

1. Hardening parts of automobile, motorbike, mold, agricultural machinery.
2. Quenching machinery parts, such as: all kinds of gear wheel, chain wheel.
3. Hardening the industrial of machine tool, such as bed guide way of machine tool.
4. Heat treatment pliers, spanner, screwdriver, drill, axe, spiker
5. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.

Melting

Non-ferrous and ferrous metals melting
Precious metal melting, like gold, sliver, platinum,etc.
Semiconductor material melting
Specialized steel, iron, copper melting
Metal alloy melting, like aluminum alloy, zinc alloy, copper alloy,etc.

Welding

1.welding diamond saw blade, carbide saw blade welding and diamond cutting tools, grinding tools, drilling welding.

2. carbide cutting tools for machining welding. Such as turning, milling cutter welding.

3. mining tools, welding, such as "one" bits, pillar gear drill bits, dovetail coal drill bits, drill rods riveting, all kinds of shearer, a variety of shearer, boring machine pick a variety of welding.

4.The welding of various wood working tools, such as various woodworking planer, milling, and welding a variety of woodworking drill.

Forging

Hot forming all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist drill of hot forging, hot rolling, metal annealing. Such as: tensile steel; wire, nail wire heating; stainless steel annealed.

Packaging & Shipping

Packing Details:Export standard packing,inner carton outer wooden box,double protection

Delivery Details:In stock,in one day after geting payment

Our exhibition

Public welfare charity

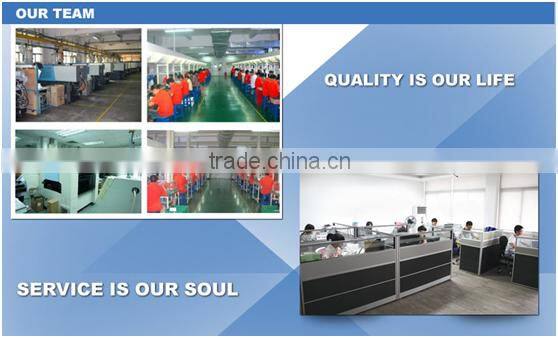

Company Information

Our Services

Pre-sale service:

We will recommend the most suitable machine for customers according to their requirements

In-sale service:

(1) We will strictly manufacture the machine according to relevant technical standards.

(2) We will take run test according to relevant equipment test run regulations.

(3) We will strictly check up the machine,before delivery, only good machine will be sent to customers.
(4) We will delivery on time.

After-sale service:
(1)We will be free to guide the installation, commissioning and test run, by sending the installation drawings, and sometimes to call or send e-mail.
(2)We will carry out a one-year warranty period (e.g. excluding normal wear and tear parts and parts damage compensation caused by improper operation.
(3)We will be free to replace all equipment components during warranty period. The potential problems of customer service and customer service after sales.
(4)Provide long term technical support. Also for different work pieces, to guide and help to produce the inductor.

FAQ

1. Which countries your products are exported to?
Our products have been sold all over the world and with related certifications.
2. How about the warranty?
All our products have one year quality warranty, during the warranty period, the spare parts for replacement are free. And we provide life long technical support and other assistance.

3. How to install your machine?
  We have installation instruction papers and videos, we will teach till you can do it yourself.

4. What about delivery?
We offer assistance on seeking best shipping way and suitable forwarder .
Any loading port and any destination city address are both OK for us.

5. How about the payment terms and delivery time?
Payment terms for any machines: 100% T/T/ Western Union/ESCROW with buyer protection.
We have machine in stock,so we surely will send out the machine after getting payment in one day ,if no any special adjustment request from clients.

6. If I have paid but can not receive the goods, how should I do?
Alibaba international website is a famous trade website and it has run very well these years.
Every supplier on it has paid a large amount membership fee, and spare much effort to manage their business well.
We have Chinese business licenses which can be checked  on Chinese official website or we can show it to you,and these licenses are also kept back-up on Alibaba
If we do anything illegal without honest,we would get punished very badly after you Sued  that your concern will never appear, please do not worry

7. Is your goods has CE certificate?
Yes, all our goods has CE certificated. All machines are high quality goods.

8. What is your company: Trader or Manufacturer ?
We are manufacturer and have a big factory , warmly welcome to visit our factory and contact us.
