Home > Products > D-Dual Output Switching Power Supply > D-120A 120W Dual LCD Monitor Power Boards
D-120A 120W Dual LCD Monitor Power Boards
- Ningbo Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Smun | |
| Model Number | D-120A | Output Power | Other, 120W | |
| Output Type | Dual | Input Voltage | Other, 110V/220V | |
| Output Voltage | 5V,12V | Output Frequency | 47-63HZ | |
| Output Current | 12A,5A |
Product Description

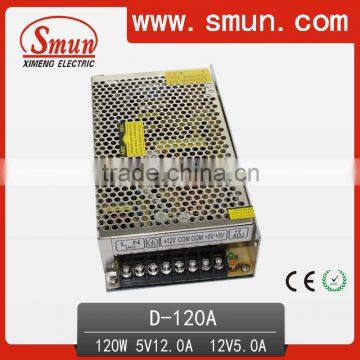

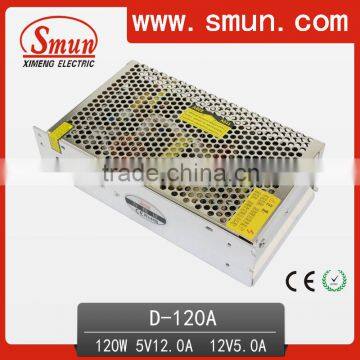

D-120A 120W Dual LCD Monitor Power Boards
· 1. AC input voltage range selected by switch
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit/over load
· 4. LED indicator for power on
· 5. Dual output
· 6. 100% full load burn-in test
· 7. 2 years warranty
| D-120W Dual output switching power supply | ||||
Model NO. | OUTPUT | Tolerance | range | efficiency |
| D-120A | 5V , 2-12A 12V, 0.5-5A | ± 2% ± 6% | 60mV 120mV | 78% |
| D-120B | 5V , 2-10A 24V, 0.4-4A | ± 2% ± 7% | 60mV 150mV | 80% |
| D-120C | 12V 24V | ± 2% ± 7% | 60mV 150mV | 80% |
| AC input voltage range | 85-132VAC/170-264VAC 47-63HZ 240-370VDC | |||
| input current | 2.5A/115V 1.25/230V | |||
| AC inrush current | Cold-start current 35A | |||
| Leakage current | < 0.5mA/240VAC | |||
| Over load protection | 105-150%cutdown output, auto-recovery | |||
| set up, rise, hold up time: | 200mS 100ms 30ms | |||
| withstand voltage: | I/P-O/P: 1.5KVAC 1Minutes I/P-FG: 1.5KVAC 1MInutes O/P-FG: 0.5VAC 1minutes | |||
| working temperature | -10~+60° C | |||
| weight/packing: | 0.85kg 20PCS/17KG | |||
| Size | 199*110*50M M | |||
| certificate | CE ISO9000 ROHS | |||
| Warranty year | 1 year | |||
| Protections | Short circuit / Over load / Over voltage | |||
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
