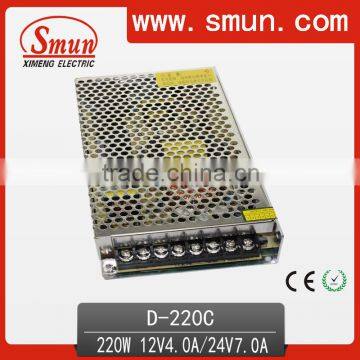

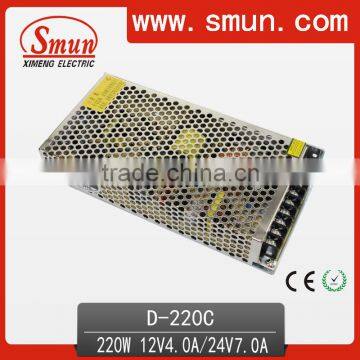

Hot-sale 220w 12v4a 24v7a dual output switching power supply special designed for LCD LED TV
- 10000 Piece / Pieces per Month
- Ningbo Shanghai
- T/T D/P D/A Credit Card PayPal
You May Like
-
250W 5V 12V Dual Power Supply With 2 Years Warranty
-
250W Dual Output 5V 24V Switching Power Supply D-250B
-
250W Dual 5V 12V Output Power Supply D-250A
-
250W 5V 24V Dual Output Switch Mode Power Supply With CE RoHS
-
250W 5V 24V Dual Output Power Supply D-250B
-
250W 12V 24V Dual Power Supply With CE RoHS Approved
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SMUN | |
| Model Number | D-220C | Output Power | 201 - 300W | |
| Output Type | Dual | Input Voltage | Other, 90-132vac 180-264vac | |
| Output Voltage | 12v24v | Output Frequency | 50HZ | |
| Output Current | 4.0a;7.0a |
Product Description
Hot-sale 220w 12v4a 24v7a dual output switching power supply special designed for LCD LED TV
· 1. AC input voltage range selecte by switch
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit/over load/over voltage/over temp
· 4. Cooling by free air convection
· 5. LED indicator for power on
· 6. 100% full load burn-in test
· 7. 2 years warranty
| Model | D-220A | D-220B | D-220C | ||||||
| Output | DC Voltage | Ch1:5v | Ch2:12v | Ch1:5v | Ch2:24v | Ch1:12v | Ch2:24v | ||
| Voltage tolerance | ±2.0% | ±6.0% | ±2.0% | ±7.0% | ±3.0% | ±7.0% | |||
| Rated Current | 2-20A | 0.5-12.5A | 2-20A | 0.4-6A | 0.5-4A | 0.4-7A | |||
| Related Power | 220w | 220w | 220w | ||||||
| Wave&Noise | 80mVp-p | 120mVp-p | 80mVp-p | 150mVp-p | 120mVp-p | 150mVp-p | |||
| DC Voltage ADJ range | Ch1:-9%~+10% | ||||||||
| Set up,rise,hold up time | 200ms 100ms 30ms | ||||||||
| Input | Voltage Range | 95 ~132VAC 180-264VAC 47-63HZ | |||||||
| AC Current | 15A/115VAC 8A/230VAC | ||||||||
| Efficiency | 78% | 82% | 87% | ||||||
| AC inrush current | Cold start current 25A/115V 50A /230VAC | ||||||||
| Leakage current | <3.5mA/240VAC | ||||||||
| Protection | Overload | Related output power 105-150% start overload protection | |||||||
| Protection type: cutoff output, recovery after restart power | |||||||||
| Over voltage | Ch2 :115%~135% | ||||||||
| Hiccup mode,recovers automatically after fault condition | |||||||||
| Environment | Working temp humidity | -10~+60°C 20%~90%RH | |||||||
| Storage temp, humidity | -20~+85°C 20%~90%RH Non-condensing | ||||||||
| Withstand vibration | 10-500Hz,2G 10min/1 cycle, period for 60min, each axes | ||||||||
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||||
| Isolation resistance | I/P-O/P:I/P-FG:O/P-FG: 100M Ohms/500VDC | ||||||||
| Standard | Safety standard | Fit UL1012 | |||||||
| Refer | Design refer to GB4943,UL60950,EN60950 | ||||||||
| EMC standard | Design refer to GB9254,EN55022 Class A | ||||||||
| Other | size | L199*W98*H38mm | |||||||
| Package | 0.7kg, 30pcs/21kg | ||||||||
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25of ambient temperature. 2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. | |||||||||
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide customzation service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
