CQJG SMG High Efficiency Machine To Produce Pellets Used For Pharmaceutical Industry

Specifications

SMG Pharmaceutical Machines Description:

SMG Pharmaceutical  Machines can be widely used in pharmaceutical, chemical, foodstuff industry etc for experiment.

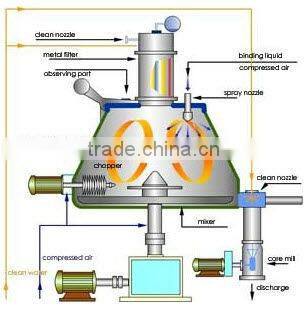

 It is composed of mainframe,speed reducer,dicharging institution,chopped cutter(Auxiliary mixing),operating electrical box and balance pot cover. Wet Granulation Machine can finish the mixing, humidification,granulating in one time

SMG Pharmaceutical Machines have the following process,

Mixing

Fully mix:The innovative design of the Z shape type impeller results in excellent and even overall mixing of the product even it is operated at low speeds. Low shear force can reach gentle and even mixing results. the center cone makes the material not to store in the pan botton and dead corner,then there is need to overturn or rock the pot body.

Granulating

Granules of highest quality are produced thanks to the excellent and controlled mixing of the

product and the uniform dispersion of the spray fluid. The large granulation zone together with the excellent blending performance of the Z shape type impeller providing reproducible product results even if the API content is extremely low. Depending on the selected product and the binder fluid, the particle size of the granule can be varied and controlled by optimizing the process parameters.

 Features:

1.High efficient production,mixing and granulating are finished in 8-15mins.

2.  Good granules,the sizes are very uniform,firm,liquidity is good after drying.

3.   suitable for heat sensitive material, mixing time is short,the heat generated because of the friction between material is less.

4.Compound mechanical , air sealing straucture avoid leakage and cross-contamination.

5.The material is ss316,ss304 stainless steel which will not react with the material

6.Can be used to combine with fluid bed dryer.

7.WIP online cleaning system can be choosen to install.

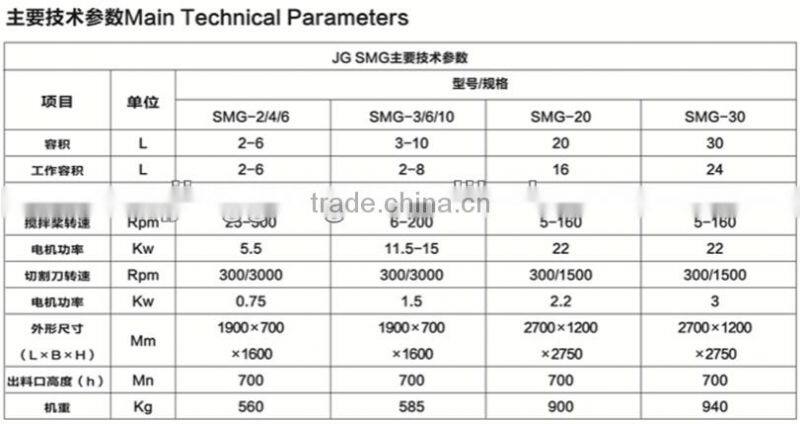

Parameters:

Remark: Technical data refer to standard units and standard processes and may change according to chosen options and process requirements.

                                                 SMG-3/6/10

                                                   SMG-25

Packaging

standard wooden case

Delivery time

Within 45 days after first payment

Payment

30% T/T pre-payment

70%T/T before the delivery time

Warranty

1-2 years under the 8 hours working time

Our Services:

1.Installation, commissioning and training

2.Provide Two years recommended spare parts

3. make trial production with 3 batches material

4.Supply the validation documents

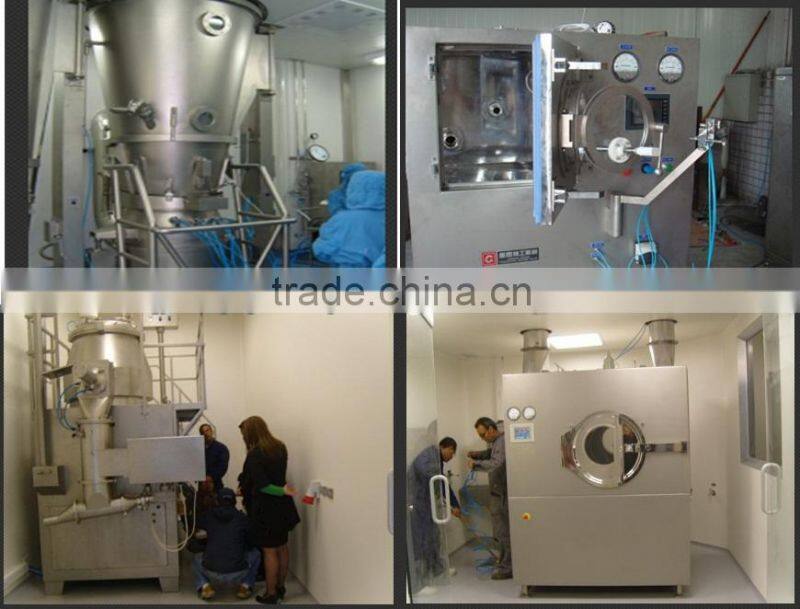

Installation, commissioning:

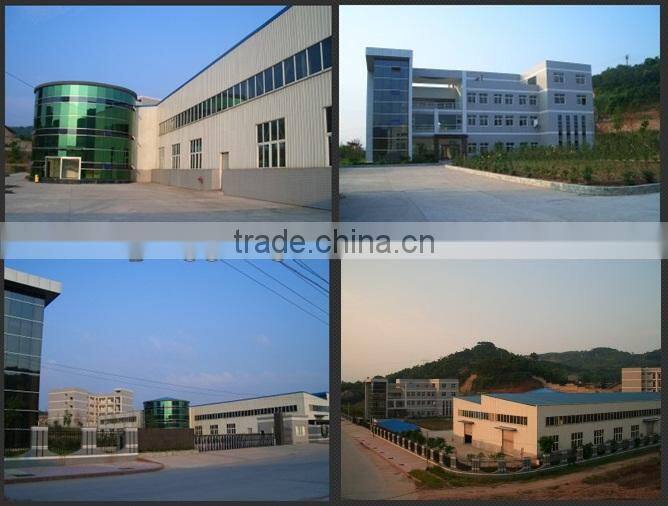

Company profile:

Chongqing Jinggong Pharmaceutical Machinery co.,Ltd. was established in 1996, company is more than 30mu includes 20000 square meters scientific and production plants. We are certified as a high-new-technology company by the Technologic Council of Chongqing. And the quality management system was founded and assessed to be in compliance with the ISO9001,CMP,CE.

As a full service company, Jinggong always hold on this belief”research and develop independently ,master the core technology,be successful with quality” ,so we have engaged in Fluid bed,granulators,coters etc. in pharmaceutical, food, feedstuff and chemical industry for many years to make our footprints around all the world.

And now, professional engineers and sale teams can provide you better products and technical guidance,but we are still on the way to make our customers more satisfied.

Certificate

JG footprints

Our poducts have been sold to more than 30 provinces in china and all the world
