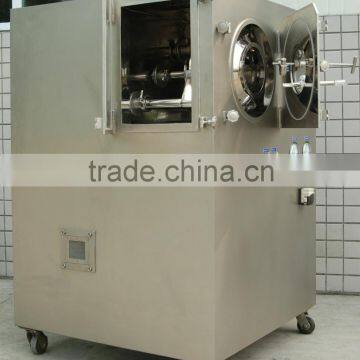

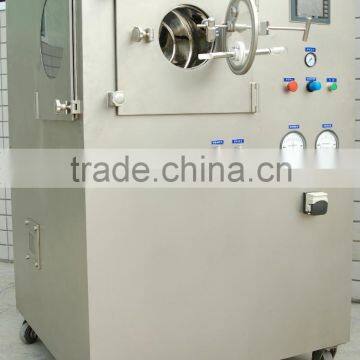

BGB-1 High Efficient Tablet Sugar Film Coating Machine

Specification of BGB-1 Hight Efficient Tablet Film Coating Machine

This high efficient coating machine can make organic film, water soluble film and sugar coating for various tablets, pills, candies etc. Widely used in pharmacy , food, biology and other areas,.

The tablet core keeps doing complex motion inside the clean and sealed rotation drum. After mixed by the thermostatic mixing drum, the coating medium is sprayed over the tablet core through the spray gun. Clean hot air supplied by the hot air cabinet passed through the tablet core and is later discharged from the ventilation door, which makes coating medium dries quickly and forms a solid, dense and smooth film on surface of the tablet core. The whole process is completed under the control of PLC. The high efficiency tablet coating machine is equipped with automatic feeding and discharging device, which is convenient and efficient and prevents cross contamination. Under the action of streamline guide plate stirrer , the tablet core moves smoothly and frequently, which eliminates the phenomena of failing from high places and collision, solves the problem of fragment and cracked edges and improves yield.

1. Special layout of the two fans,one blower, one fan, and formed a dry micro-environment of negative pressure ventilation; heat efficiency is high, dry quickly and has high production efficiency.

2. Because it is a special mode of ventilation, it will not have a protruding object, not the existence of substandard products; and whether by air or not air-jet spray will not be flying, so the effect of excellent jet.

3. As a result of negative pressure ventilation micro environment, it can dry the product  (hot air, cold wind) effectively, film coated and sugar coated products will not adhere to the pot wall

4. The form of coating drum adopt the using horizontal form, the connecting way is quick active clamp; internal installed  a baffle board to uniform mixing of the special tablet, it would be no difference, no deviation of the weight of the product evenly

5. Owing to the sealing design, it is not a jet dust flying and clean environment, and it is able to correspond with the GMP for the installation of high efficiency.

6. the rotary speed of Coating drum can be adjust by frequency converter easily.

7. this machine using specially designed spray gun that can easily connect; and spray can be adjusted more easily and dismantal, and easily connect with the peristaltic pump device

8. BGB series of high-performance coating is extremely compact design, simple and easy to install.

9. To meet the requirements of all of the coating process, including the good, the beautiful appearance of tablet products

Parameters:
