Laboratory Fluid-Bed Granulator/fluid Bed Dryer/fluid Bed Coater/multi-functional Fluid Bed Processor

 Fluid-Bed Granulator Description:

 DPL  Fluid-Bed Granulator combines the top spray granulating ,drying , bottom spray coating and tangent spray pelleting,coating etc. into one unit in pharmaceutical,chemical industry,foodstuffs etc.

DPL  Fluid-Bed Granulator has following processes:

 Mixing

All products which can be fluidized e.g. powder, granules, extrudates, pellets etc. are homogeneously mixed in the Jinggong Compressed Air Fluidized Bed . By using special air flow (horizontal , radial and tangential ) to make the mixing prfect.

Drying

All products which can be fluidized up dry in the Compressed Air Fluidized Bed .

Granulation

Powdery products. By spraying of binders nearly every requested granules can be produced in the  Compressed Air Fluidized Bed.

 Fluid-Bed Granulator Features:

1.With high efficiency, spray granulating could be accomplished within 60-120 minutes.

2.WURSTER coating system makes the pellets only contact with the atomizing area to improve the speed and uniformity of coating.

3.centrifugal rotary disc technology and heating air for tangent spray to make pellets directly from power

4.These three function to be conducted in the closed machine so as to prevent the dust polluting the workshop.

5.The whole machine is made of stainless steel SS316,SS314 that will not react chemically with the material.

6.Operate easily, and can set many groups of parameters

7.Anti-explosion,2bar,10bar,12bar can be chosen toguarantee Safety.

8.Dehumidification system and WIP online cleaning system are optional

9. can print and record operation parameters under the control of PLC and HMI.

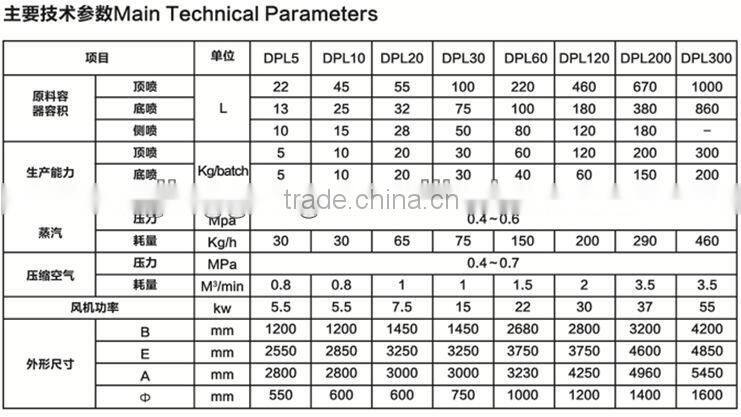

Parameters For  Fluid-Bed Granulator :

Our Services For  Fluid-Bed Granulator :

1.Installation, commissioning and training

2.Provide Two years recommended spare parts

3. make trial production with 3 batches material

4.Supply the validation documents

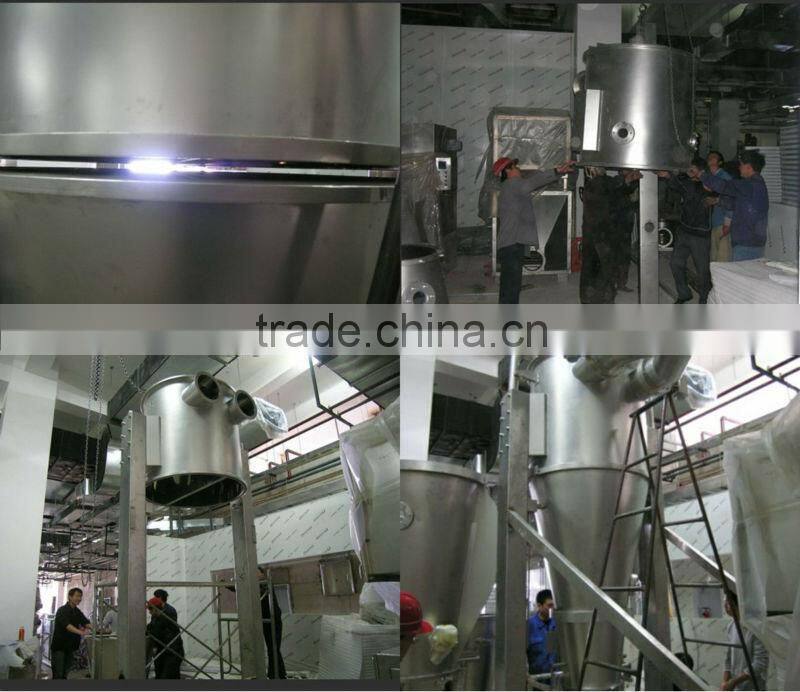

Installation, commissioning For Fluid-Bed Granulator

Packaging

standard wooden case

Delivery time

Within 45 days after first payment

Payment

30% T/T pre-payment

70%T/T Before the delivery time

Warranty

1-2 years under the 8 hours working time

Company profile:

Chongqing Jinggong Pharmaceutical Machinery co.,Ltd. was established in 1996, company is more than 30mu includes 20000 square meters scientific and production plants. We are certified as a high-new-technology company by the Technologic Council of Chongqing. And the quality management system was founded and assessed to be in compliance with the ISO9001,CMP,CE.

As a full service company, Jinggong always hold on this belief”research and develop independently ,master the core technology,be successful with quality” ,so we have engaged in Fluid bed,granulators,coters etc. in pharmaceutical, food, feedstuff and chemical industry for many years to make our footprints around all the world.

And now, professional engineers and sale teams can provide you better products and technical guidance,but we are still on the way to make our customers more satisfied.
