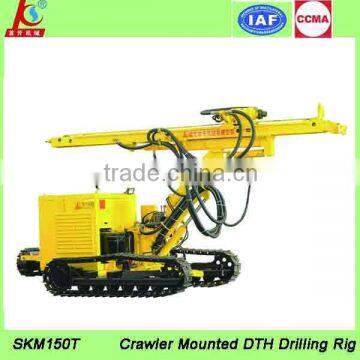

Quarry machine !SKM150T full hydraucli dth drilling equipment

Quarry machine !SKM150T full hydraucli dth drilling equipment

1, new drag chain to protect all air hose and oil hose .

2, centralized controls system

 It features advanced hydraulic system and air way system, All moves are centralized controlled, easy and convenience.

 conducting hydraulic valve to realize different moves of drill arm, guarantee drilling rig stable and high efficiency for rock drilling.

 The special designed unidirection throttle valve in the hydraulic system can realize stepless speed regulating for rotating, to increase applicability for various rock layers and work efficiency.

3, reliable matched power

 providing YC2115  diesel engine for this drilling rig. 56kw power with four cylinders.

water tank and hydraulic oil radiator guarantees diesel and drilling rig hydraulic system operating safely and reliably.

single connected gear pump provides driving force for propulsion system and rotating system respectively via diverter valve, The hydraulic system is more stalbe and reliable.

4, two 550C gear oil pump

 Makes hydraulic oil produce much higher pressure ,provide much torque and power for hydraulic power head drilling.

5, strong power head

 Slewing drive adopts planetary gear reductor and oscillating motor with foreign advanced technique. It moves stably with low speed and high torque. one motor and two motor power head for your choose.

6, diesel protection device

 natural inhaling system combines of desert air filter, second air filter and oil filter to improve  the applicability for hostile environment and working life of diesel

The drilling rig uses clean air source from air compressor and disconnect the natural inhaling way of diesel.

Unidirection throttle valve can adjust and stablize air inflow of diesel.

air dryer can remove the water of air source of air compressor efficiently.

7,reliable four wheel and one belt

integrated crawler belt installs conveniently with reliable performance.

care chain wheel, tensioner spring and turgor cylinder can guarantee suitable crawler belt tensioner degree.

 Main technical parameters:

Technical parameters for the matched air compressor :

Why to choose us?

1. Our annual output 10000 sets fully meet customers' requirements.

2.We are the member of CCMA (China Construction Machinery Association).

3. We gained the title of National High and New Technology Enterprise by The Government.

4. Our Products has obtained ISO9001:2008 management system certification

5. We focus on development and earn several Utility Model Patent Certificates.

6. We are always try best to answer your pre-sales and after sales questions.

Our custmer from Paksitan, Philippines,Vietnam,Indonisia, Russia etc visit our workshop to inspect our machines

Shoukai Machinery Company`s machines are famous at home and abroad,with more than 12 years manufacturer ,sales ,export experiences , our machines are applicated in many site, the following is a part of our machines to working on the site:
