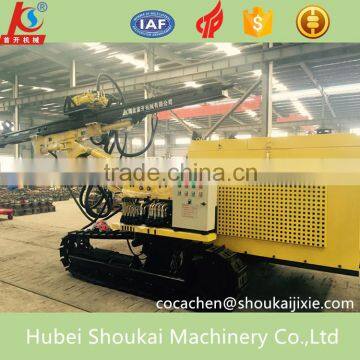

Factory sale !SKM153 deep hole drilling rig for sale

Factory sale !SKM153 deep hole drilling rig for sale

1, new propulsion system

use hydro-cyclinder chain pully propulsion system, compact structure, big lifting force and stablity.

2, centralized controls system

 It features advanced hydraulic system and air way system, All moves are centralized controlled, easy and convenience.

 conducting hydraulic valve to realize different moves of drill arm, guarantee drilling rig stable and high efficiency for rock drilling.

 The special designed unidirection throttle valve in the hydraulic system can realize stepless speed regulating for rotating, to increase applicability for various rock layers and work efficiency.

3, reliable matched power

 providing YC2115  56kw diesel engine and 45kw electric engine for this drilling rig.

water tank and hydraulic oil radiator guarantees diesel and drilling rig hydraulic system operating safely and reliably.

single connected gear pump provides driving force for propulsion system and rotating system respectively via diverter valve, The hydraulic system is more stalbe and reliable.

4, drag chain to protect all air hose and oil hose from damage ,increase the service life of the hose.

5, strong power head with double motor

 Slewing drive adopts planetary gear reductor and oscillating motor with foreign advanced technique. It moves stably with low speed and high torque.

6, diesel protection device

 natural inhaling system combines of desert air filter, second air filter and oil filter to improve  the applicability for hostile environment and working life of diesel

The drilling rig uses clean air source from air compressor and disconnect the natural inhaling way of diesel.

Unidirection throttle valve can adjust and stablize air inflow of diesel.

air dryer can remove the water of air source of air compressor efficiently.

7,reliable four wheel and one belt

integrated crawler belt installs conveniently with reliable performance.

care chain wheel, tensioner spring and turgor cylinder can guarantee suitable crawler belt tensioner degree.

 Technical parameters for SKM153:

SKM153 matched air compressor technical parameters:

SKM153 working in different sites:

Why to choose us?

1. Our annual output 10000 sets fully meet customers' requirements.

2.We are the member of CCMA (China Construction Machinery Association).

3. We gained the title of National High and New Technology Enterprise by The Government.

4. Our Products has obtained ISO9001:2008 management system certification

5. We focus on development and earn several Utility Model Patent Certificates.

6. We are always try best to answer your pre-sales and after sales questions.

Our custmer from Paksitan, Philippines,Vietnam,Indonisia, Russia etc visit our workshop to inspect our machines

Shoukai Machinery Company`s machines are famous at home and abroad,with more than 12 years manufacturer ,sales ,export experiences , our machines are applicated in many site, the following is a part of our machines to working on the site:

Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
