Home > Products > Sawdust Dryer Machine > Sawdust Dryer Flash Air Tube Type Cyclone Separator

Sawdust Dryer Flash Air Tube Type Cyclone Separator

FOB Price

US$ 480 - 8,800 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, wood sawdust airflow dryer, sawdust dryer flash air tube type cyclone separator
Place of Origin	Henan, China	Brand Name	TIANYUAN
Model Number	TYHG650	Voltage	Customized
Power(W)	3-75kw	Dimension(LWH)	236012002000
Weight	2000KG	Certification	ISO9001:2008
Warranty	One Year	After-sales Service Provided	No overseas service provided

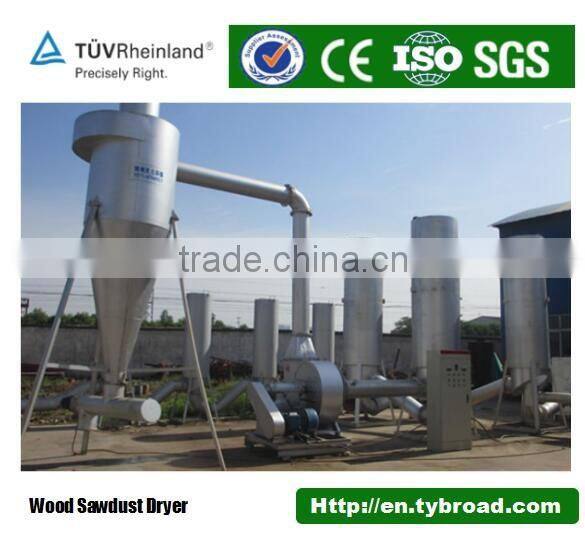

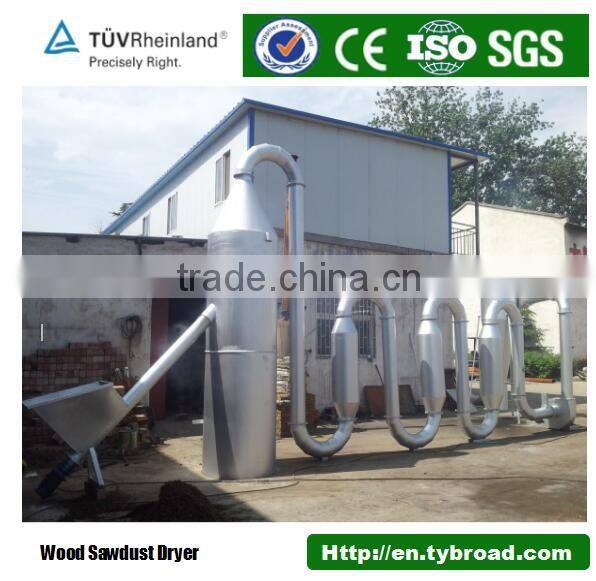

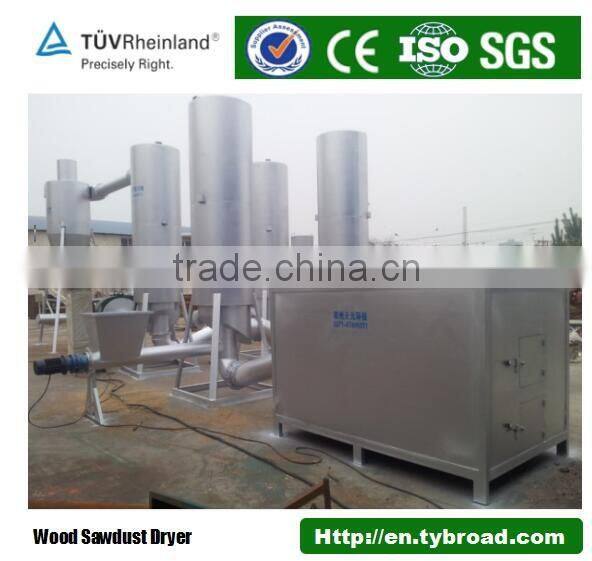

sawdust dryer flash air tube type cyclone separator

sawdust dryer Introduction:

New type high energy saving air dryer were developed on the basis of the original air dryer was a new type of

air flow drying machine.structure and performance are greatly improved,get great acceptance by client,machine

can install at client will and working site.

Airflow Dryer Index

sawdust dryer flash air tube type cyclone separator

Specification :

Model	Specification	Photo
TYHG450	Drying cylinder dia.: 450mm Feeding humidity :10-80% Output humidity : 5% Feeding size :≤3 mm Water evaporation :200-400 kg/h Dimension :61.54 m Power:5.65 kw Weight: 1550 kg
TYHG650	Drying cylinder dia. :650mm Feeding humidity :10-80% Output humidity : 5% Feeding size :≤3 mm Water evaporation: 300-600kg/h Dimension :81.54 m Power : 17.2 kw Weight: 5500 kg
TYHG950	Drying cylinder dia. :950mm Feeding humidity : 10-80% Output humidity :5% Feeding size : ≤3 mm Water evaporation: 400-800kg/h Dimension :152.55 m Power :34.4 kw Weight: 7500 kg

Office and workshop:

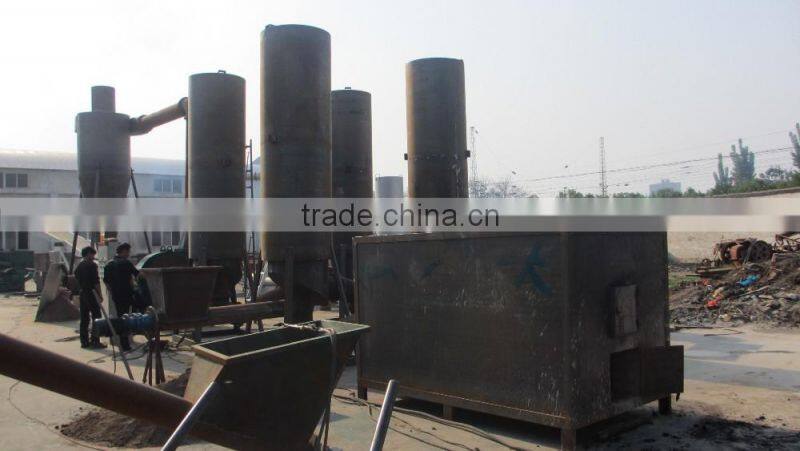

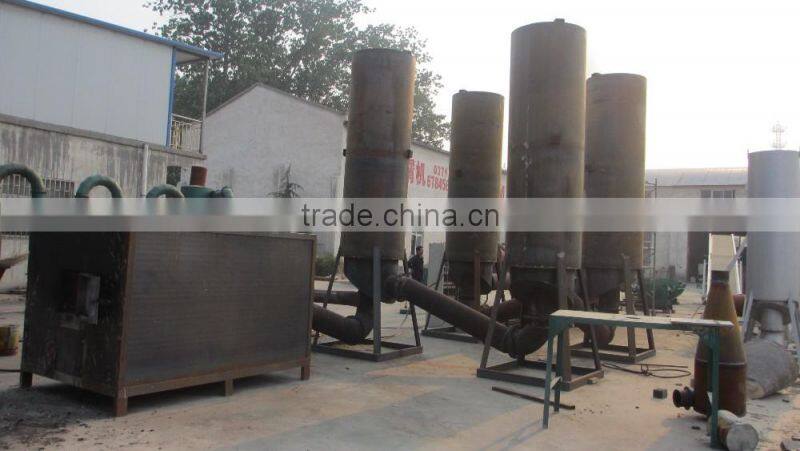

Dryer in factory for trail running before shipment :

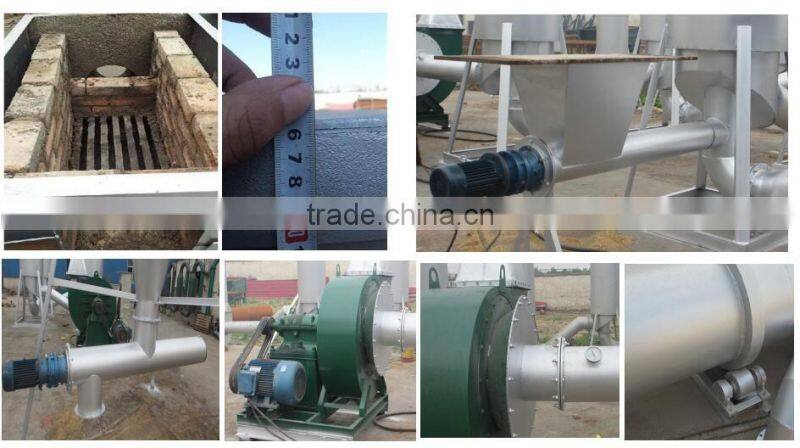

Detail view for each part :

Heating Source :

Rotary Drum Sawdust Dryer

Rotary Drum Dryer

Export Loading
