Class 130 Solderable Polyurethane enamelled aluminium wire AWG30, ECCA AWG31, ECCA AWG32

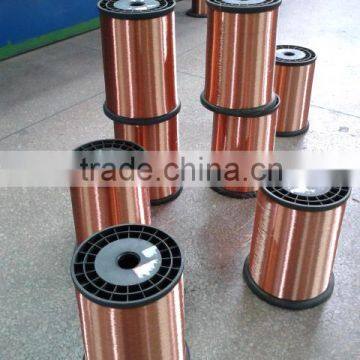

Copper Clad Aluminum Enameled wire(ECCA Wire)

Products Description

Model

Specification

Executive Standard

Features

Application

130grade polyurethane enameled round copper clad aluminum wires

QA-1/130(2UEW/130) QA-2/130(1UEW/130)

0.12-090MM

IEC standard reference

directly solderability, good colorability, good chemical properties.

Automatic Transformers, flyback transformers, electronic components, step motors

155grade polyurethane enameled round copper clad aluminum wires

QA-1/155(2UEW/155) QA-2/155(1UEW/155)

0.12-090MM

IEC standard reference

130grade polyester enameled round copper clad aluminum wires

QZ-1/130(2PEW/130) QZ-2/130(1PEW/130)

0.12-090MM

IEC standard reference

High adhesiveness, thermal stability, good chemical properties.

Electrical tool, auto-motor and transformers, electronic components, instrument windings, step motors, communication equipment micro-motors.

155grade polyester enameled round copper clad aluminum wires

QZ-1/155(2PEW/155) QZ-2/155(1PEW/155)

0.12-090MM

IEC standard reference

180grade polyester enameled round copper clad aluminum wires

QZ-1/180(2PEW/180) QZ-2/180(1PEW/180)

0.12-090MM

IEC standard reference

180grade polyestermide polyimide enameled round copper clad aluminum wires

QZY-1/180(2EIW/180) QZY-2/180(1EIW/180)

0.12-090MM

IEC standard reference

High thermal endurance, thermal stability, high temperature and thermal shock performances, high speed winding

Usually applied to the frequent use of high stability high speed motor and household appliances, such as cacum, cleaner, washing machine and tools.

220grade polyestermide polyimide enameled round copper clad aluminum wires

QZY/XY-2/220(1EI/AIW/220)

0.12-090MM

IEC standard reference

High temperature resistant, resistant to clod, puncture resistance, thermal shock resistance and good thermal stability, resistance to short-term load of.

High temperature transformer, sealing equipment, refrigerator compressor, high strength electric motor, electric tools.
