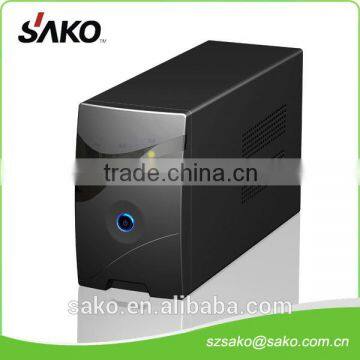

small UPS 600VA-1500va

FOB Price

Negotiable / Piece

500 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	SAKO
Model Number	PCF-350VA/500VA/600VA/650VA/750VA/800VA/850VA/1000VA/1200VA/1500VA	Phase	Single Phase
Protection	Short Circuit	Weight	5.12
Output Voltage	220VAC,50Hz	Type	Standby
Application	Computer

Product Description

Specifications

small UPS,LED display;Intelligent Battery Management;Smart RS232,RJ11,RJ45,USB Option;Compatibility with generators;beeping

SAKO PCF SERIES OFF-LINE UPS
Automatic voltage ragulation(AVR)
Wide Input Voltage Range Option
High/Low Voltage Protection
Overload/Short Protection
Cool start computer even there is no main power
Automatic recharge even UPS is off
Beeping Alarm
Colored LED display
Intelligent Battery Management
Smart RS232 and RJ11 Option
Compatibility with generators


Product	Requirements	Model 1	Model 2	Model 3	Model 4	Model 5	Model 6	Model 7
Power (VA)	Requirements	PCF-350	PCF-500	PCF-650	PCF-800	PCF-1000	PCX-1200	PCX-1500
Input	Voltage	120 VAC or 220/230/240VAC ±25%(145-280V±5V Option)
Input	Frequency	60Hz/50Hz +/-10%
Output	Voltage (Inverter Mode)	120 VAC or 220/230/240VAC ±10%
	Capacity	350VA/210W	500VA/300W	650VA/360W	800VA/480W	1000VA/600W	1200VA/720W	1500VA/880W
	Frequency (Inverter Mode)	60Hz/50Hz +/-10%
	Transfer Time	6MS typical
	Waveform	modified-Sinewave
Protection	Spike & Surge Suppression	yes
	Over/Under Volt.	Switch to Bat. O / P when Mains over regulation range
	Over load /short Circuit	Fuse & current limited for both Mains and Battery modes
Function	Cool start	Cool start computer even there is no main power
Function	Automatic recharge	Automatic recharge even UPS is off
Battery	Type	Lead-Acid maintenance-free
	Dc Bus	12V4.5Ah	12V7.0Ah		12V9.0Ah	12V7.0Ah	12V7.0Ah	12V9.0Ah
	Number	1PC	1 PC			2 PCS
	Recharge time	8hours≥90%
	Back up time(one PC)	5-8mins	8-15mins	10-18mins	15-25mins	20-30mins	20-30mins	25-45mins
Physical	Weight (KGs)	4.5	5	5.5	6.5	10.5	11	11.5
	Shipping Wt.	5	5.6	6	7	11	11.5	12
	Product Dimensions (mm)	33595160				355120195
	Package Dimensions/caron	395360230 mm/ 2 PCS in 1 Carton				435395275/ 2 PCS in 1 Carton
Soft ware	Windows & NT	Auto save & shut down
Efficiency	AC-AC	1
Efficiency	DC-AC	0.6
Acoustic	Noise level	≤45dB
Environmental	Temperature	-5-45 DegreeC
Environmental	Humidity	20% to 90%
Power Outlets	No. and types	2 SOCKETS				3 SOCKETS
