Extruded Fried Chicken Coating Orange Bread Crumbs Maker

Specifications

Cheese Ball Processing Line	Core Filling Snack Food Machine

Extruded Fried Chicken Coating Orange Bread Crumbs Maker

 I. Description

     Extruded Fried Chicken Coating Orange Bread Crumbs Maker is researched and developed on the basis of international advanced technology. The performance and quality have reached the highest domestic level of the same line. The line changes the traditional making process. From mixing materials, extruding, cutting, drying to the finished products are done in one automatic line. The bread crumb is widely used as food coating additives on the surface of frying food like: frying chicken, fish, sea foods (shrimp), onion ring etc. The taste is fragrant, crispy, delicious and no rich nutrition

1. Raw Materials: Bread Grit

2. Products: Bread Crumb, Widely Used as Food Coating Additives on the Surface of Frying Food Like: Frying Chicken, Fish, Sea Foods(Shrimp), Onion Ring etc.

3. Capacity: 120-150 KG/H, 200-250 KG/H, 400-500KG/H

4. Flow Chart: Mixing —Extrusion —Cutting—Pulverizing —Vibrating

5. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries

6. Machines Materials: All the machines are made by food grade stainless steel.

7. Technical Parameter

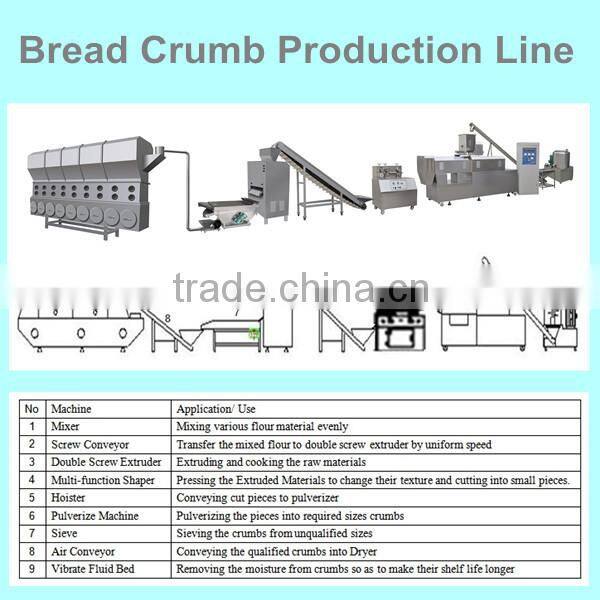

II. Flow Chart

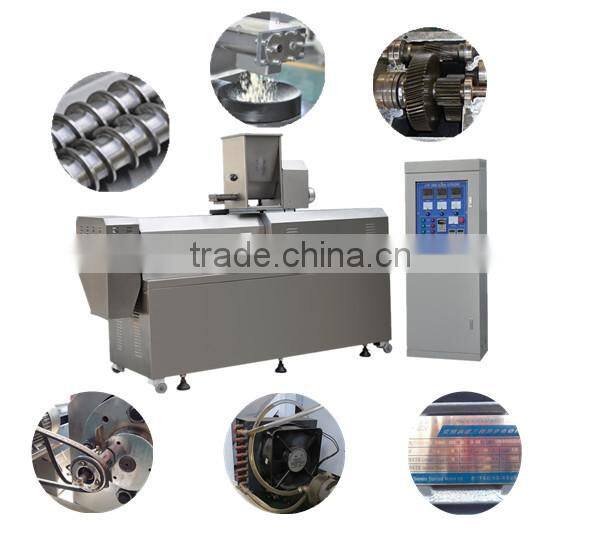

III. Details & Features

1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.

2. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.

3. The gearbox has automatic lubrication function, with extends gear life.

4. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely.

5. SIMENS(China) Motor.

6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

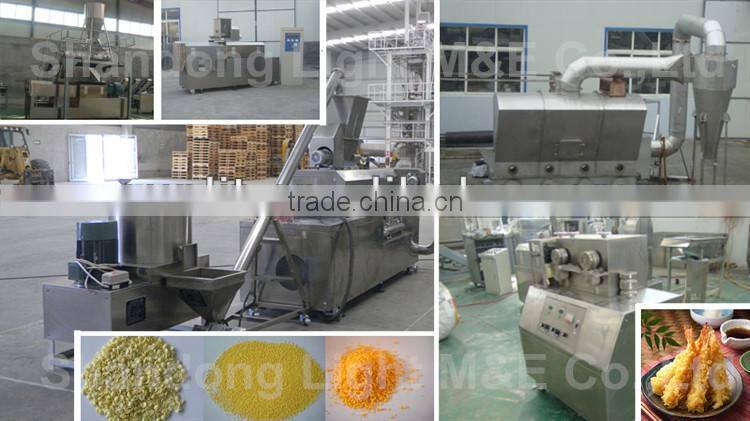

IV.  Product photos

V. We Provide Satisfied Service & Turnkey Solution

a.) Consultation service before, during, and after sales;

b.) Project planning and design service;

c.) Debugging of equipment until everything is functional;

d.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;

e.) Training of equipment maintenance and operating personally;

f.) New production techniques and formulas;

g.) Provide 1 year complete warranty and life-time maintenance service.
