DC12V/24V High Flow Water Valve Used for Hydroponics

FOB Price

US$ 1.5 - 3 / Piece

1000 Pieces(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Pilot
Pressure	Low Pressure	Power	Solenoid
Material	Other, POM, SPCC & POM	Temperature of Media	Normal Temperature
Media	Water	Port Size	10mm
Place of Origin	Guangdong, China	Model Number	DSV2-A
Brand Name	DYX	Application	Other, hydroponics

Product Description

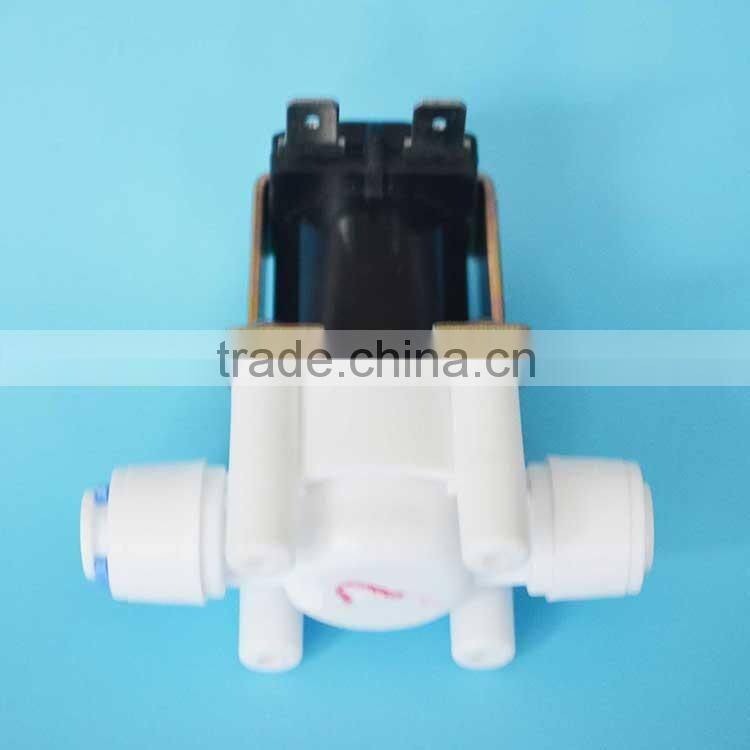

DC12V/24V high flow water valve used for hydroponics

Are you looking for 2 way mini water solenoid valve?

Our method is unique. We don't have an off-the-shelf, take-it-or-leave-it attitude. We know that your ideas are outstanding, and the pump or valve should not be the same. That's why you have as many as 30,000 choices from us.

We'll offer you samples so you can test it for your application. And if it doesn't work, we'll help you with another configuration, until you find the one which meets your exact specifications.

This is a very popular model 2 way Mini water solenoid valve.

Widely Applications:

Technical data:

Model: DSV2-A

Related voltage	DC24V
Max. current	<220mA
Power consumption	4.3-5.3W
Waste water ratio	300-500CC/50gal
Water flow rate	0.5-1.2LPM
Leakge	<9mmHg/min from 300mmHg at 500cc tank
Pressure	0-800Kpa
Duty cycle	Tested to >50,000 operating cycles in 500cc tank.
Temperature range	0-55℃
Weight	100g
Remark	normally closed valve

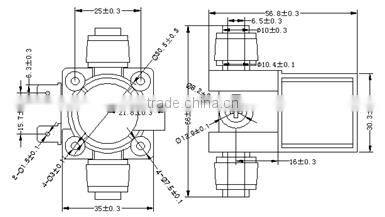

Demension:

Material:

Shell: SPCC;
Shaft: POM.

Why choose us?

You'll get samples in 5 days, save your time.
No matter who you are, you'll be respected and get fast service.
Midea and Airmate choose us too.

What you get?

Fast reply in 24 hours.
98% qualified rate of products.
Professional R&D, boost your applications.

Certificate

Factory tour

Don't hesitate to contact us, what if we work very well?
