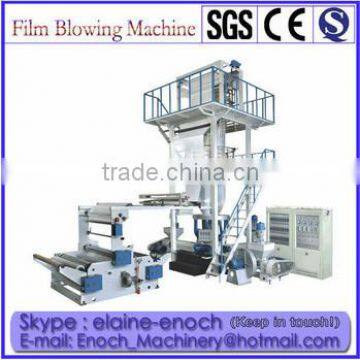

A+B+C Down rotary die head three layer film coextrusion machine
- ANY PORT IN CHINA
- T/T
You May Like
-
EN/H-50C-2W-400 One Screw two Die head PE Film Blowing Machine
-
EN/H-55C-2W Single Screw dual Die plastic bag film Blowing Machine
-
High Speed Shopping bag blowing and printing machine
-
Rotary die head PP bag Film extrusion Machine (EN-P)
-
EN/H-50SZ-600 Automatic Grade and Packaging Line Type High Speed Film Blowning Machine
-
EN/H-50SZ-600 Plastic Film Blowing Machine with High Speed
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Other, film blowing machine | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | ENOCH | Model Number | EN/3L | |
| Voltage | 380/220V,50HZ,3phrase | Weight | 4000kg | |
| Certification | SGS,CE | Warranty | Within one year free |
Product Description
Specifications
1,three layer film machineA+B+C2.high output
3.down rotary
Why do u choose ENOCH MACHINERY ?
1. SGS, CE, Production Assessment, Gold Supplier certificated
2. Our emphasis : QUAILITY ,HONEST AND RESPONSIBLE
3.All the film blowing machine pics we show on ALIBABA is take in our factory
4. All machines will be examined and tested before delivery
5. Free Warranty since the vessel arrive at your port ,after-sale service for whole life
ABOUT US
Ruian Enoch Plastic Machinery Co.,Ltd landed in Ruian city, Zhejiang province. The professional manufacturer of plastic bag machinery ,especially film blowing machine .Our company’s main product is High speed HDPE film blowing machine, Rotary die head PE film blowing machine, three layer co-extrusion film blowing machine, etc kinds of film blowing machine, stretch film machine, plastic bag machine, no-woven bag machine and printing machine. Our products are sold all over China, also we export our machines to Southeast Asian, Middle East, Latin America, Russia, Africa. And we receive very good reputation from our customers.
Our concept is “Gain reputation from Quality, Gain Brand from Reputation, Gain Market occupancy from Brand”. We pay close attention to staff management and after-sales service, focus on scientific and technological progress and information, continue to grow and develop us. Also we welcome any feedback from our customer to improve our quality and service.
A+B+C multi layer film extrusion machine
| MODEL | EN/3L45 | EN/3L50 | EN/3L55 |
| SUITABLE MATERIAL | LDPE LLDPE HDPE | ||
| FILM WIDTH | 600-1000mm | 800-1500mm | 1000-1800mm |
| FILM THICKNESS | 0.02-0.20mm | 0.02-0.20mm | 0.02-02mm |
| MAX. EXTRUSION OUTPUT | 80-100kg/hr | 120-150kg/hr | 150-180kg/hr |
| EXTRUDER | |||
| SCREW DIAMETER | φ 45/50/45 | φ 50/55/50 | Φ 55/60/55 |
| SCREW L/D LENGTH | 30: 1 | 30: 1 | 30: 1 |
| SCREW AND CYLINDERMATERIAL | SACM-645/38 CRMOALA | SACM-645/38 CRMOALA | SACM-645/38 CRMOALA |
| CYLINDER COOLING | 370× 2 | 550× 2 | 550× 3 |
| MAIN MOTOR | 15/18.5/15Kw | 18.5/22/18.5Kw | 22/30/22Kw |
| TEMPERATURE CONTROL | 3 | 3 | 4 |
| AVERAGE POWER-CONSUME | 50kw | 65Kw | 80kw |
| TYPE OF DIE | |||
| DIE SIZE | Φ 200 | φ 300 | Φ 450 |
| TEMPERATURE CONTROL | 3 | 3 | 4 |
| AIR RING | 1 | 1 | 1 |
| AIR BLOWER | 5.5kw | 7.5Kw | 7.5kw |
| TAKE-UPUNIT | |||
| ROLLER WIDTH | φ 165× 1100mm | φ 165× 1600mm | φ 165× 1800mm |
| EFFECTIVE WIDTH | 1000mm | 1500mm | 1800mm |
| TAKE-UP SPEED | 10-65m/min | 10-65m/min | 10-65m/min |
| TAKE-UP MOTOR | 1.5kw | 1.5Kw | 2.2kw |
| WINDING UNIT | |||
| TYPE | SURFACE FRICTION TYPE | ||
| WINDING MOTOR | 1.5kw | 1.5kw | 3kw |
| WINDING SPEED | 10-65m/min | 10-65m/min | 10-65m/min |
| OVERALL DIMENSION(L× W× H) | 6.5× 5.5× 6.5m | 7.5× 5.8× 7.5m | 7.8× 6.4× 7.5m |
Our Services
Within one year, we will supply spare parts for free and free DHL,and replace the broken part freely within one year.
Our Engineer service:
We will send technician to customer’s factory to install the machine and teach the worker to operate the machine. And the customer should pay all the cost.
Packaging & Shipping
Packaging:first packed by film.then fix by stretch film.
shipping:Loading container in factory
Pls feel free to contact me by SKYPE, WECHAT ,or call me ,i would glad to hear from your inquiry .
