Vertical Type slitting Machine for plastic film

Why do u choose ENOCH MACHINERY ?

1. Ture manufacturer SGS, CE, Production Assessment, Gold Supplier certificated

 2.  Our emphasis : QUAILITY ,HONEST AND RESPONSIBLE

3. All the film blowing machine pics we show on ALIBABA is take in our factory

4. All machines will be examined and tested before delivery

5. Free Warranty since the vessel arrive at your port ,after-sale service for whole life

   ABOUT US

Ruian Enoch Plastic Machinery Co.,Ltd landed in Ruian city, Zhejiang province. The professional manufacturer of plastic bag machinery ,especially film blowing machine .Our company’s main product is High speed HDPE film blowing machine, Rotary die head PE film blowing machine, three layer co-extrusion film blowing machine, etc kinds of film blowing machine, stretch film machine, plastic bag machine, no-woven bag machine and printing machine. Our products are sold all over China, also we export our machines to Southeast Asian, Middle East, Latin America, Russia, Africa. And we receive very good reputation from our customers.

     Our concept is “Gain reputation from Quality, Gain Brand from Reputation, Gain Market occupancy from Brand”. We pay close attention to staff management and after-sales service, focus on scientific and technological progress and information, continue to grow and develop us. Also we welcome any feedback from our customer to improve our quality and service.

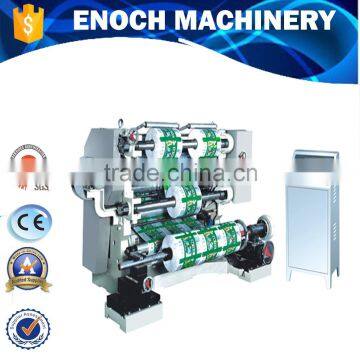

FQ-L900/1300A Vertical Automatic Slitting & Rewinding Machine

Application:
This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP,PE, CPE, PVC, aluminum foil and paper, etc. and can cut edge, separate and cut material according to different requirements during production

Performance and Features:
1. This machine is a kind of vertical slitting & rewinding machine
2. Independent master control panel, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material.
4. Equipped with magnetic powder brake for unwinding tension control
5. Magnetic clutch control for rewinding tension control
6. It can be equipped with rim charge conveying or rewinding device (which can be selected on order).
7. Automatic meter counting device.

Specification :

Model : FQ-L900A

Max. width of mother roll: 900mm
Max. diameter of mother roll : dia.600mm
Width of final roll: 30-800mm
Slitting and rewinding speed: 5-160m/min
Tolerance of EPE: <±0.5mm
Total power : 3.2kw
Weight of machine : 1800kg
Dimension: 2600*1470*1400mm

Model : FQ-L1300A

Max.width of mother roll:       1300mm

Max.diameter of mother roll :   dia.600mm

Width of final roll:                 30-1200mm

Sliting and rewinding speed:     5-160m/min

Tolerance of EPE:                 <±0.5mm

Total power :                     3.2kw

Weight of machine :               1800kg

Dimension:                       2600*1470*1400mm

Our Services

Within one year, we will supply spare parts for free and free DHL,and replace the broken part freely within one year.

Our Engineer service:

We will send technician to customer’s factory to install the machine and teach the worker to operate the machine. And the customer should pay all the cost.

Packaging & Shipping

Packaging:first packed by film.then fix by stretch film.

shipping:Loading container in factory
