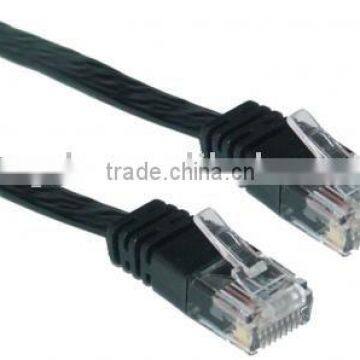

Flat Cat5e UTP Cable
USD $0.1 - $0.5
/ Piece
2000 Pieces(Min. Order)
- SHANGHAI
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DONGDU | |
| Model Number | ADOT-NET-21 | |||
Product Description
Specifications
Supply Ultrathin Cat5e UTP CableCat5e cable,utp cable and so on
2Pairs,4Pairs,AWG:28/30/32AWG(optional)CCA,CU
Ultrathin Cat5e UTP Cable
Material of conductor: bare copper---(as per requirement)
Material of insulation: FR-PE FR-PP
Jacket Material: FR-PVC, PE ,LSZH
Jacket colors: red, white,black blue, yellow, green, gray, orange, purple and pink
Rubber boots used for strain relief, protecting from the bending or other damages
Pinout: 568B straight through, 568A straight through, cross-over
Connector:gold plated Special RJ45 male/male connectors
Length: 1M,2M,5M,10M,15M,20M,100M,305M,500M(as per requirement)
AWG:23/24/26/28/30AWG(optional)
ROHS&REACH
| Category 5e Horizontal and Backbone Cable (100m)*see note | ||||||
| Frequency (MHz) | Insertion Loss (dB) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB) | PSELFEXT (dB) | Return Loss (dB) |
| 0.772 | 1.8 | 67.0 | 64.0 | 19.4 | ||
| 1.00 | 2.0 | 65.3 | 62.3 | 63.8 | 60.8 | 20.0 |
| 4.00 | 4.1 | 56.3 | 53.3 | 51.8 | 48.8 | 23.0 |
| 8.00 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 |
| 10.00 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | 25.0 |
| 16.00 | 8.2 | 47.2 | 44.2 | 39.7 | 36.7 | 25.0 |
| 20.00 | 9.3 | 45.8 | 42.8 | 37.8 | 34.8 | 25.0 |
| 25.00 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | 24.3 |
| 31.25 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | 23.6 |
| 62.50 | 17.0 | 38.4 | 35.4 | 27.9 | 24.9 | 21.5 |
| 100.00 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 | 20.1 |
| NEXT: Near end cross talk | ||||||
| PSNEXT: Powersum near end crosstalk | ||||||
| ELFEXT: Equal-level far-end crosstalk | ||||||
| PSELFEXT: Powersum equal-level far-end crosstalk | ||||||
| Note: Definitions are as per TIA/EIA-568-B.2, | ||||||
