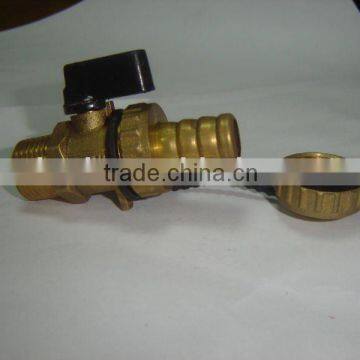

Brass ball valve with cover JD-4030

FOB Price

US$ 0.3 - 20 / Piece

1000 Pieces(Min. Order)

Port NINGBO OR SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Ball
Pressure	Medium Pressure	Power	Manual
Material	Brass	Temperature of Media	Medium Temperature
Media	Water	Port Size	20
Place of Origin	Taiwan, China	Model Number	JD-4030, JD-4030
Brand Name	JD toyo ITALY

Product Description

Specifications

1: brass ball valve
2: Brand :TOYO ITALY
3: Size:1/2" -4"
4: Working medium: water ot oil ....
5: ISO9001:2000

BRASS BALL VALVE

Body :Brass
Ball:Brass
Stem: Brass
Handle :Steel handle with plastic cover
Size: 1/2 . 3/4 . 1 . 1 1/2 . 1 1/4 . 2 . 2 1/2 . 3 . 4
Package: Standard export packaging .We will use stamdard export package if no special requirements . but it is availible to provide co.lourful package according to your design or we make design or your brand if required .
Lead time : 30 days after getting your deposit or LC

size:1/4"-4"

max pressure: 25 bar
temp.:-10<t<120
threaded : ISO228/1:2000
opening /closing tests:20000times .
anti-oxygen glue applied to join body&bonnet
suitable medium: water &non-causticity liquid ,&saturated steam

NO.	Component	Material
1	Body	Brass
2	Bonnet	Brass
3	Ball	Brass
4	Seat Ring	Tefon
5	Stem	Brass
6	Packing Rings	Teflon PVC
7	Washer	Brass
8	Handle	steel
9	Nut	Iron

material: brass body , brass ball, brass stem , steel handle .

BOTE BALL VALVE are bottom lkoaded stem designed , this anti blow out stem also prevent tampering with the internals of the valve when in the line , and the ball valve have a double seal with elastic O-ringS chosen for their high resistance to ageing . perfect seal at low and high pressure and wear resistant , solid and relianble for life time use.
