Lan Cable Tinned Pins And RJ45
- SHANGHAI
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DONGDU | |
| Model Number | ADOT-NET |
Product Description

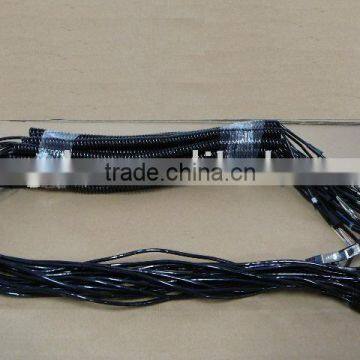

Lan cable Tinned Pins and RJ45
Computer & LAN Cables Catalog - SPECIFICATION SHEET |
4X2X24 AWG FLEX |
PU jacket |
GENERAL CONSTRUCTION: |
Low voltage control and power cable, containing 4 twisted 24 AWG pairs, |
cabled together and jacketed with flexible PU, CMX grade. |
1. Wire: |
1.1. Conductors: Stranded bare copper, 7x0.20 mm nom.)24 AWG(. |
1.2. Insulation: PO, 0.97 mm nom. O.D. |
1.3. Total number of wires : 8. |
1.4. Color code: Blue, White/Blue, Orange, White/Orange, |
Green, White/Green, Brown, White/Brown. |
|
2. Cable Arrangement: |
All pairs are cabled together. |
|
3. Outer Jacket: |
3.1. Material: flexible FR-PU. |
3.2. Thickness: 0.7 mm nom. |
3.3. Color: per request. |
3.4. O.D.: 5.8 mm nom. |
3.5. Marking: inkjet type marked per request.. |
Jacket Color:Black |
|
4. Electrical Properties: |
4.1. DC Resistance : 96 Ω/Km, max. @ 20C |
4.2. Dielectric strength Ω 700 Volts/1 minute. |
4.3. Coupling attenuation )EMC(Ω 40 dB min, 30-100 MHz. |
|
5. General PropertiesΩ |
5.1. Total WeightΩ 34 Kg/Km nom. |
5.2. Temperature RangeΩ -40C to +80C. |
5.3. Flame Test Ω design to UL 1581 VW-1. |
