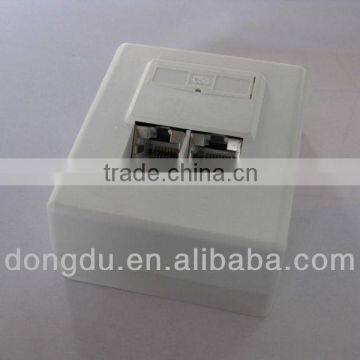

Germany Type CAT5E FTP Wall Outlet(face Plate) 80*65mm
- Shanghai&Ningbo&Shenzhen
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DD | |
| Model Number | DD-FP59 |
Product Description
Specifications
Germany type CAT.5e FTP Faceplate( 80*65*32mm)1. Zinc Die Casting &ABS
2. Germany Standard
3.ROHS compliant
Germany type CAT5E FTP Wall outlet(face plate) 80*65*32mm,Zinc Die Casting
Fit for horizontal distribution in the equipment room and equipments connecting.
Technical Details:
1. Plastic Part: ABS
2. Shield: Zinc Alloy
3. Contact: Phosphor Bronze with gold-painted fu-50u
4. IDC Contact:Phosphor Bronze with nickel-painted
5. Insertion Life: ≥ 750 Mating Cycles
6. Plug Retention Force: 89N
7. Temperature: -60 ~70 degree
8. IDC Accept: 22-26 AWG Solid Wire
- Current Rating: 1.5 Amps
Insulation Resistance: 500 Megaohm
DC Resistance: 0.1 ohm MAX
Voltage: 150 VAC MAX
Wire Scheme: T568A/ B
Fluke test : 3-4 Db( 90 meters), 100MHZ
ROHS Compliant
