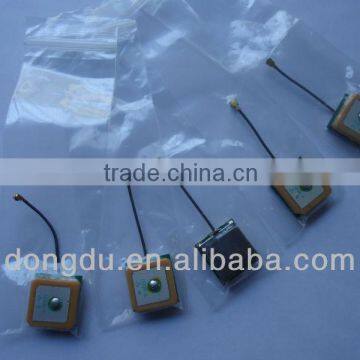

GPS 16db internal patch antenna
- Shanghai&Ningbo
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DD | |
| Model Number | DD-1808 |
Product Description
Specifications
GPS internal antennaGain: 16dB
V.S.W.R <1.8:1
Noise Figure: 1.5Max
DC current: 10-14mA by 3.3VDC
Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cm×7cm ground plane
Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume)
Polarization: RHCP
(ii)LNA/Filter
LNA Gain(Without Cable):28 dBi Typical
Noise Figure(dB):1.2
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0
DC Voltage(V ):2.7/3.0/3.3/5.0/ 3.0 to 5.0 etc.
DC Current (mA):11 Max
(iii)Mechanical
Weight(gram) <50
Size(mm):18×18x4(ceramic antenna)
Cable Length(cm):optional
Cable type:optional
Connector:optional
