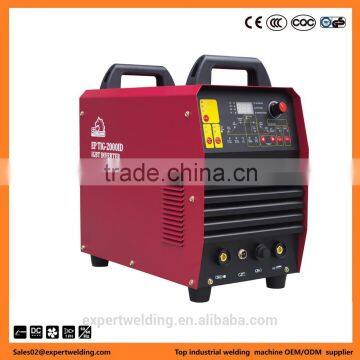

200A AC/DC TIG pulse welding machine
- Shanghai Shenzhen ect
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | China | |
| Brand Name | EP welding | Model Number | EP TIG-2000ID | |
| Arc Current | according to wire rod | Pulse Frequency | 0.2-15Hz | |
| Pilot Arc Current | according to wire rod | Rated Duty Cycle | 60% | |
| Motor Type | AC Motor | Dimensions | 476*242*423 | |
| Usage | Welding use | Voltage | single phase 220V | |
| Power(W) | 9.3KVA | Certification | CE CCC ISO9001 | |
| Warranty | One Year | After-sales Service Provided | Overseas third-party support available |
Product Description
1. New Generation Welder with Intelligent Pulse TIG
2. AC DC inverter TIG/MMA welding machine
3.Imported IGBT, its beam is of superior quality, stable arc and low failure rate.
4. Intelligent Spot welding
5. Easy-to-read LCD display for precise settings LCD
6. High duty cycle
7. Intelligent protection of over voltage, over current, over heat and low voltage.
8. Small volume, light weight and portable design
9. Optional function:1.Applicable for cellulosic material welding patible with generator 3.VRD on/off
Advantages
1.In the flat welding position, especially upward vertical position welding, 2.contributing to control the size of pool
3.Large gap or uneven gap seam, helping to improve weld quality
4.Minimal heat input, reducing deformation of the workpiece.
4.Accurate control of arc energy, in favor of stainless steel and heat-sensitive material welding
6.Scaly welding surface, suitable for welding workpiece require high appearance.
7.Arc noiseless, tungsten bear less load, ensure its longer life span.
If the welding material is aluminum, we recommend you use this DC AC argon welding machine to ensure perfect welding.because this special function of this welder can start arc and keep welding easily.
Model | EP TIG-2000ID(AC/DC) | ||||
Related Input Power | Single Phase 220Vac×230Vac×240Vac ±10% 50/60HZ | ||||
Related Input Current (A) | 35.4(TIG) | 39.5(MMA) | |||
Related Input Power (KW) | 5.2(TIG) | 6.4(MMA) | |||
Related No load Voltage (V) | 66 | 66 | |||
| TIG | MMA | |||
Start current range (A) | AC | LIFT | DC | DC | DC |
| HF | 30-200 | 10-200 | – | – |
| 10-200 | 30-200 | 10-200 | – | – |
Welding current Range(A) | 10-200 | 30-200 | 10-200 | 10-170 | 10-170 |
Crater arc current Range(A) | 10-200 | 30-200 | 10-200 | 10-170 | 10-170 |
Insulation Class | F | F | |||
Protection Class | IP23S | IP23S | |||
