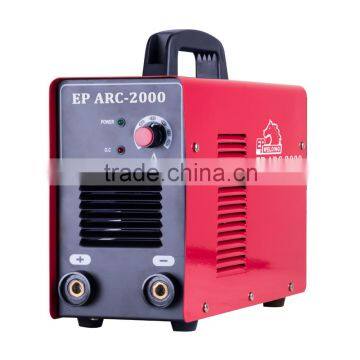

IGBT MMA 200 welder arc welding machine

FOB Price

Negotiable / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Sichuan, China
Brand Name	EP welding	Model Number	EP ARC-2000
Arc Current	10-200	Pulse Frequency	no
Pilot Arc Current	10-200	Rated Duty Cycle	60%
Motor Type	DC Motor	Dimensions	330132270mm
Usage	welding stainless steel, alloy and so on	Voltage	220V±10%
Power(W)	7.2KVA	Certification	CCC CE ISO90001
Warranty	One Year	After-sales Service Provided	Overseas third-party support available

IGBT MMA 200 welder arc welding machine

1.High duty cycle 60% which can nearly satisfy the welder work intensity.

2.Compact and portable are applicable to the spring loaded ,repair or field

operation .

3.Excellent arc properties and solution droplet transfer.

4.Overheating protection function.

5. Power network compensation capacity of not less than ±15%, with the decrease

of welding current and the increase of compensation capacity.Strong anti-interference

capability of Control system.Less than 1ms to respond to the changesof power network,workpiece,electrode and maintain the stable current output.

6. Convenient connection function.All the connectors in the form of external

connection with the advantages of quickness,safety,simplicity,stability.

Specification

Model	ARC1200	ARC1400	ARC1600	ARC1800	ARC2000
Input Voltage(V)	AC230V,50HZ
Rated input current(A)	18	20	22	24	26
Maximum input current(A)	26	32	36	40	43
No load output voltage(V)	85	85	85	85	85
Output voltage with load(V)	20.4-24.8	20.4-25.6	20.4-26.4	20.4-27.2	20.4-28
Current Range(A)	10-120A	10-140A	10-160A	10-180A	10-200A
N W., kg	3.5	4.5	5.0	5.5	6.0
Duty cycle	35%	35%	35%	35%	35%
Insulation class	H	H	H	H	H
Accessories included	Complete accessories per piece: welding holder with cable and (+) quick plug,earth clamp with cable and (-) quick plug,brochure, carton
Useable electrodes	1.6-3.2mm	1.6-3.2mm	1.6-4mm	1.6-4mm	1.6-5mm

Standard

A. Quick plug 2 pcs

B. Earth Clamp 2m, 16mm ² 300A

C. Electrode Holder 3m, 16mm ², 200A

Packaging & Shipping

1. Packing : One pc arc 200 welder in one colorful carton with foam.

2. Shipping: One 20' container load about 700 pcs dc inverter arc/mma Welding machine
