Die Steel DIN 1.2379 Cold Work Tool Steel D2

Specifications

   DIN 1.2379,SKD11, AISI D2 steel with discount price

Comparable steel

D2(USA AISI)/ 1.2379 (Germany DIN)/ X160CrMoV12(France NF)/ SKD11(Japan JIS)/ Cr12MoV1 (China)

Chemical Compostion:

  Delivery Condition:

    Hot rolled, black, Hardness or tempered

   Hardness: 28-34 HRC/ Annealing: HBS<=235

  Form of Supply

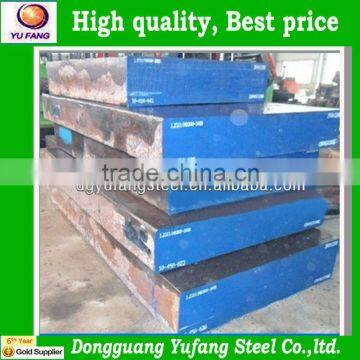

We offer AISI D2 / DIN 1.2379 mould steel in different types of shape, including square, flat and round. difference size of length/width/thickness available etc.

Specification:

Thickness: 16/18/20……385/390/395/400MM/

Width: 185/225/250……1800/2000/2200MM/

Length: 2000-5800MM

 character:

 1. Good mechanical property, make surface have equal hardness after deal with it;

 2. Nice polishing, mini roughness on the surface, deal with induraion in advance.

 3. Can be used directly after the mould machined.

Quality Assured Supply:

  1.2379 tool steel is supplied in accordance with our ISO 9001 : 2008 registration.

Application:

  1. Typical applications include punching and blanking dies for stainless steel sheet, brass, copper, zinc and hard abrasive materials generally.

2. Other application suitable for this tool steel include deep drawing dies, cupping dies, forming dies, sheet metal forming rolls, shear blades for strip and sheet including flying shears, cold extrusion dies, broaches, plug gauges, ring gauges, master hobs for cold hobbing plastic moulds, cut moulds for plastics, special taps, straybolt taps, brick and tile mould liners.

 YUFANG main steel list

Contact Yufang Steel with your enquiris for D2/ 1.2379/SKD11 steel sheet, round bar diameter, sawn blanks, retangular and square bar.
