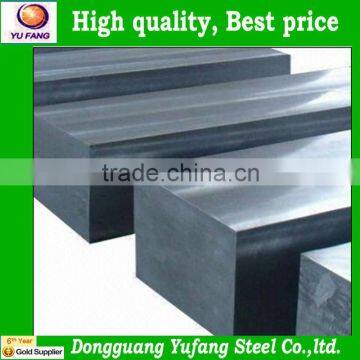

1.2083 Mould Steel Plate

1.2083 Mould Steel Plate Made In China

1. Chemical composition and comparable steel:

C:0.36-0.42    Si:<1.0   Mn:<1.0  Cr:12.5-14.5   P<0.02  S<0.005

  comparable steel :SCM414   1.2083  2083 ISO-B  M310  HPM38 S-Star

2. Hardness:

Hardened hardness: HRC=48~52

3. Size specification

l Thickness: 16~400MM

l Width: 185~2200MM

l Length: 1500~2000MM

l Round bar: 30~350MM

And we can also provide the size you required.

4. Surface condition: Black surface / Grinding / Polishing / Milling / Machined……

5. shape:flat / round bar / square bar / sheet / plate ……

6. Heat treatment: Normalized / Annealed / Quenched / tempered

7. Inspection: Ultrasonic test according to SEP 1921-84 Gr3, Class C/c or D/d

8. Delivery condition:

l Hot rolled or forging

l Black surface / Grinding / Polishing / Milling / Machined

l Hardened & tempering & annealing

l EAF or ESR material

9. Payment terms:

20% advance by TT; Balance pay before the shipment against shipping documents or irrevocable LC at sight

10. Delivery time: 3-15 days after advanced payment

11. Material character

l Good mechanical property

l High quenching

l Make surface have equal hardness after deal with it

l Nice polishing

l Low roughness

l Normally, it should make the heat-treatment to harden condition before use

l It can be used directly after the mould machined

l Deal with surface induration when it necessary
