ER18505M Battery,A Size Battery,A Size Spiral 3.6v Lithium Battery From Ramway

ER18505M battery,A size battery,A size spiral 3.6v lithium battery from Ramway

Electrical Characteristic

1.

Norminal capacitY:3.2Ah

(at 1.0mA, +25°C 2.0V cut off.The capacity restored by the cell varies according to current drain,temperature and cut-off)

 2.

Rated voltage  3.6V
Maximum recommended continuous current     600mA

Maximum pulse current capability              1000mA

3.

Dimension  Φ18.0*50.5mm

4.

Storage(recommended)  Max. 30°C
(For more severe condtions,consult Ramway)

5.
Operating temperature range                   -60°C~+85°C
(Operation at temperature different from ambient may lead to reduced capacity and lower voltage plateau readings)

6.Typical weight  32g

Key fetures

High and stable operating voltage
Low self discharge rate(less than 1% after 1 year of storage at +25°C)
Stainless steel container
Hermetic glass-to-metal sealing
Non-flammable electrolyte
Bobbin type
CE,SGS recognized,ISO9001 approved

Main applications

Utility metering
Memory back-up
Alarms and security devices
Automative electronics
Tollgate systems
Millitary electronics
Automatic meter reading
professional electronics

Warning

1.Fire,explosion and severe burn hazard.

2.Do not recharge,crush,disassemble,heat above 100°C;

3.Do not solder directly to the cell.

Test curve

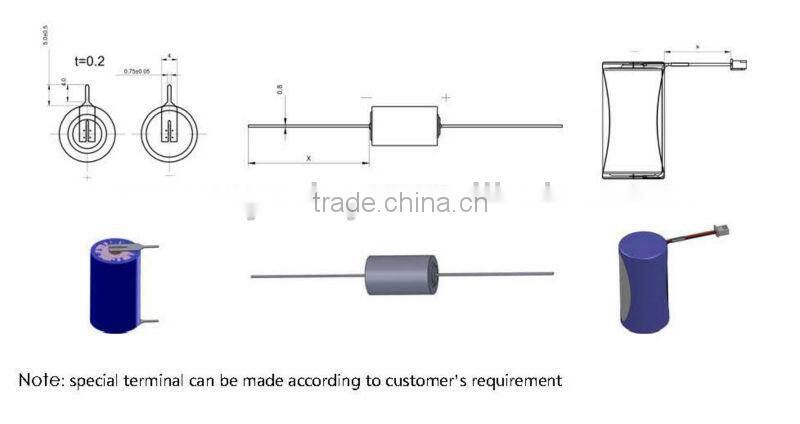

Solder and connector
