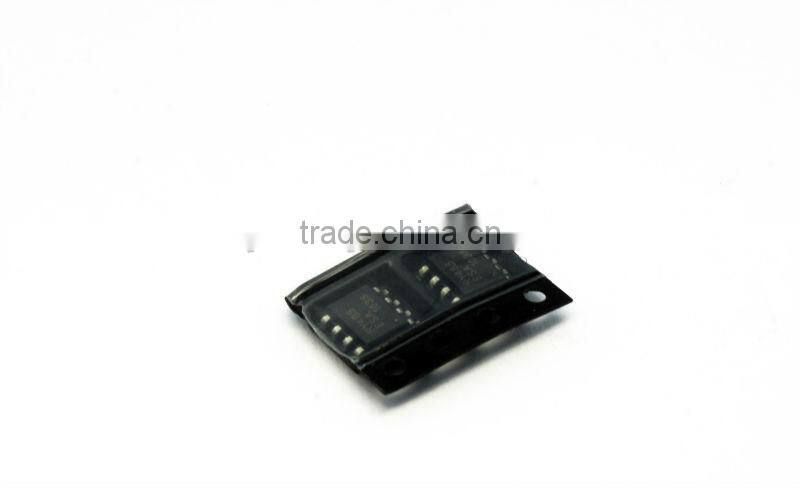

RY8023 SOP-8 driver circuit IC
- Shenzhen
- T/T
You May Like
Product Details
| D/C | 14C05 | Package | SOP8 | |
| Model Number | RY8023 | Type | Drive IC | |
| Brand Name | RAMWAY | Place of Origin | Guangxi, China |
Product Description
Relay Driver IC RY-8023
Introduction
RY8023 is a bi-direction relay driver. The near zero standby current and a maximum of 800mA driving current make it suitable for applications such as electric energy meter and other application where low standby current and high driving current is needed .
Specification
1. Supply Voltage : 5 to 25V
2. Standby Current: 10nA
3. Input High Level Threshold : 2V, compatible with most MCU output logic
4. Typical Driving Current : 300mA
Rds(on) ≈ 15ohms (Vdd=8V, PMOSFET+NMOSFET) Rds(on) ≈ 10ohms (Vdd=14V, PMOSFET+NMOSFET)
5. Peak Driving Current : 800mA (Vdd = 12V)
6.Operating Ambient Temperature: -40°C~80°C
7. Able to drive ≤ 90amps relay (Rdc = 16ohms) when Vdd = 9.5~14.5V
Drawing

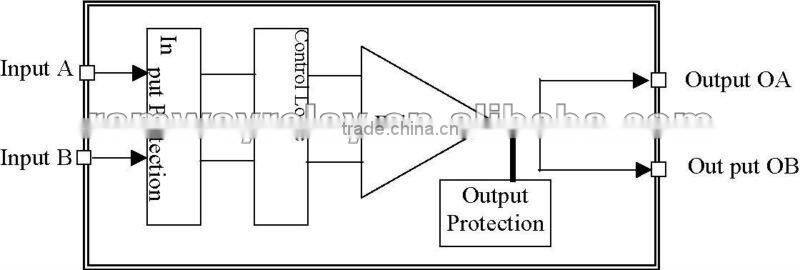

Block Diagram
Iput Truth Table
No. | Name | Description | No. | Name | Description |
1 | OUTA | Output A | 5 | OUTB | Output B |
2 | NC | Unconnected | 6 | NC | Unconnected |
3 | INA | Input A | 7 | INB | Input B |
4 | GND | Chip | 8 | VDD | Chip Voltage |
Logic Function Table
INA | INB | OUTA | OUTB |
0 | 0 | High Impedence | High Impedence |
0 | 1 | 0 | 1 |
1 | 0 | 1 | 0 |
1 | 1 | High Impedence | High Impedence |
Limit Parameters
Power Voltage,VDD-VGND | +50 | V | |||
The other pin voltage range | (VGND-0.4, VDD+0.4) | V | |||
Maximum junction temperature | 150 | °C | |||
Storage Temperature | -65~150 | °C | |||
Junction to Ambient | 120 | °C/W | |||
| Human ESD discharge model |
| 5000 | V | |
| Machine ESD discharge model |
| 200 | V | |
Packing
