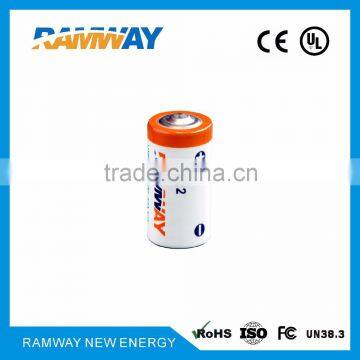

Lithium CR2 3.0v Battery,CR2 Battery for Detectror,3.0v Lithium Battery From Ramway

Electrical Characteristic

1.

Norminal capacitY:0.75Ah

(at 1.0mA, +25°C 2.0V cut off.The capacity restored by the cell varies according to current drain,temperature and cut-off)

 2.

Rated voltage  3.0V
Maximum recommended continuous current     1000mA

Maximum pulse current capability              2000mA

(At 23±2°C,battery discharge duration for 3 seconds and stand,27 seconds, it can discharge at least the max pulse discharge value which rated capacity 50% can permit)

3.

Dimension  Φ15.0*27.0mm

4.

Storage(recommended)  Max. 30°C
(For more severe condtions,consult Ramway)

5.
Operating temperature range                   -40°C~+60°C
(Operation at temperature different from ambient may lead to reduced capacity and lower voltage plateau readings)

6.Typical weight  13g

Key fetures

High and stable operating voltage
Low self discharge rate(less than 1% after 1 year of storage at +25°C)

Nickel-plated steel container
Hermetic glass-to-metal sealing
Organic electrolyte
Spiral type
CE,SGS recognized,ISO9001 approved

Main applications

Utility metering
Memory back-up
Alarms and security devices
Automative electronics
Tollgate systems
Millitary electronics
Automatic meter reading
professional electronics

Warning

1.Fire,explosion and severe burn hazard.

2.Do not recharge,crush,disassemble,heat above 100°C;

3.Do not solder directly to the cell.

Solder and connector
