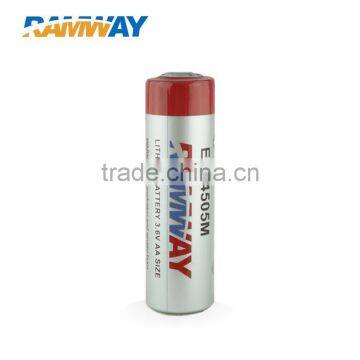

RAMWAY ER14500M Size AA Batteries, 3.6V 14500 Battery, Spiral Battery

FOB Price

US$ 1.4 - 1.6 / Piece

1000 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China	Brand Name	RAMWAY
Model Number	ER14505M	Battery Type	LiSOCl2
Nominal Voltage	Other, 3.6V	Size	AA
Nominal Capacity	2000mAh

Product Description

Electrical Charateristic

1.Nominal capacity:2000mAh

(At 1.0mA, 25 centigrade degree 2.0V cut off. The capacity restored by the cell varies according to current drain,

temperature and cut-off, For more severe conditions,consult Ramway.)

2.Rated voltage:3.6V

3.Max. recommended constant current:400mA

4.Max. pulse current capability:800mA

5.Dimension:14.5x50.5mm

6.Storage(recommended):Max.30 centigrade degree

(For more severe conditions,consult Ramway)

7.Operating temp. range:-60 to 85 centigrade degree( -76 to 185 Fahrenheit degree)

(Operation at temperature different from ambient may lead to reduced capacity and lower voltage plateau readings)

8.Typical weight:19g

Key Features

1.High and stable operating voltage

2.Low self discharge rate(less than 1% after 1 year of storage at 25 centigrade degree)

3.Stainless steel container

4.Hermetic glass-to-metal sealing

5.Non-flammable electrolyte

6.Spiral type

7.CE,SGS recognized,ISO9001 approved

Main Application

1.Utility metering

2.Memory back-up

3.Alarms and security devices

4.Automotive electronics

5.Tollgate systems

6.Military electronics

7.Automatic meter reading

8.Professional electronics

Warning

1.Fire, explosion and severe burn hazard;

2.Do not recharge, crush, disassemble,

heat above 100 centigrade degree;

3.Do not solder directly to the cell.

Solder and Connector

1.Lead wire:100mm;

2.Connector:XH-2P/2510-2P/SMP-2P/JST-SYP-2P/PH-2P/51005/51006/SMR-2P/5264.

Note

1.Free SAMPLE for testing(1-3pcs);

2.Factory price, FOB Shenzhen;

3.Connector or solder according to clients requirement;

4.If clients have special requirement on size of other dimension, please sent us the details or drawings;

5.Delivery: within 30 days after receiving the payment(this is for MOQ, any problem or special requests, contact us).

6.Provide OEM and ODM service.
