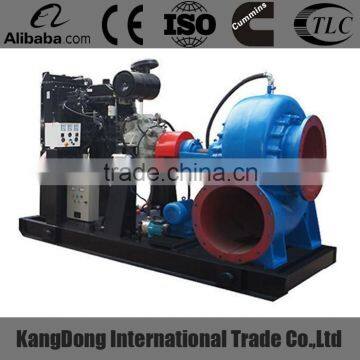

New designed Water pump with engine and gear case
- 100 Set / Sets per Month
- Shanghai or other port
- T/T
You May Like
-
Hot!!! 2kva portable inverter generator CE approved
-
High quality and competitive price water pump set powe approved by CE ISO
-
New Product! Diesel Engine Water Pump Set For Sale
-
Kaihua power KH6500SE 5kva silent power generator factory price
-
kangdonspecialized in production of diesel water pump set with high quality and competitive price Quality Choice
-
China manufacturer 400kw marine generator powered by KTA19-DM diesel ENGINE with CCS BV and BV certificates
Product Details
Place of Origin | Jiangsu, China | Brand Name | KANGDONG | |
Model Number | KH-180GF | Structure | Multistage Pump | |
Usage | Water | Power | Electric | |
Standard or Nonstandard | Standard | Fuel | Diesel | |
Pressure | High Pressure | Application | Other, water |
Product Description
Hot sale mixed flowed water pump powered by diesel engine
1. Specification of diesel engine | ||||||||
Engine brand | Cummins | |||||||
Engine model | 6CTA8.3-C240 | |||||||
Rated speed(RPM) | 2200 | |||||||
Rated power(KW) | 179 | |||||||
Number of Cylinders | 6 | |||||||
Cylinder arrangement | Vertical in-line | |||||||
Cycle | Four stroke | |||||||
Aspiration | Turbo charged | |||||||
Fuel System | PW2000 fuel pump | |||||||
Displacement (Liter) | 8.3 | |||||||
Bore×Stroke (mm×mm) | 114x135 | |||||||
Compression Ratio | 17.0:1 | |||||||
Cooling System | Forced Water Cooling Cycle | |||||||
2. Specification of pump | ||||||||
Pump model | 650HW-10 | |||||||
Matched power(KW) | 115 | |||||||
Capacity (m3/h) | 4153 | |||||||
Pumping Head(m) | 7.2 | |||||||
Suction Head Lift (m) | 4.5 | |||||||
Rated speed(RPM) | 490 | |||||||
3. Specification of alternator | ||||||||
Alternator brand | Kaijieli | |||||||
Alternator model | TWGII164C | |||||||
Rated power(KW) | 10 | |||||||
Protection Grade | IP21 | |||||||
Altitude | ≤1000m | |||||||
Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating | |||||||
Insulation Class | H | |||||||
4. Specification of vacuum suction system | ||||||||
Model | SZ-2 | |||||||
Matched power(KW) | 7.5 | |||||||
Rated speed(RPM) | 1450 | |||||||
5. Specification of control Panel | ||||||||
The control panel is instrument control panel, with the frequency,voltage,current, water temperature, oil pressure. | ||||||||
6. Specification of Gear Case | ||||||||
Model | HC138 | |||||||
Input speed(RPM) | 2200 | |||||||
Output speed(RPM) | 490 | |||||||
Reduction ratio | 4.5:1 | |||||||
7. Others like base(18# channel steel),coupling,battery,base fuel tank and so on | ||||||||
8. Dimension & Weight | ||||||||
Overall Size:3900x1600x2350mm(L*W*H) | ||||||||
Weight:4000kg |
Jiangsu Kangdong International Trade Co., Ltd is a professional leading Company of diesel gensets in China, We mainly supply:
Engine: Alternator: Control System:
Cummins (USA ) Original and OEM stamford Deep sea
Deutz Engine(Germany) Marathon Harson
Volvo Engine(Sweden), Engga Smartgen
Doosan Engine(Korea) , ComAp
Perkins(UK) MTU(Germany)
Weichai Engine(China),
Shanghai Engine (China),
Yuchai Engine (China)
A. Exporting plywood case for optional choose if needs packaging
B. Delivery Time Detail: within 10 days to 28 days (2 or 4 weeks)
Warranty
warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).
Service
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have
distributors all over World that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
