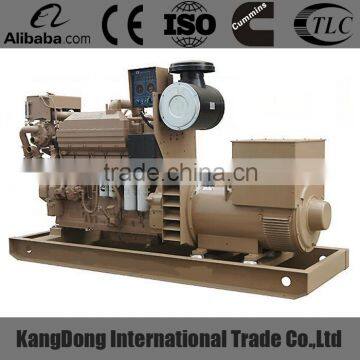

China manufacturer KTA19-DM marine generator powered by diesel with CCS and BV certificates
- Shanghai Port
- T/T Credit Card
You May Like
-
Factory price 5KW diesel generator welding machine with ISO9001-2008 certificate
-
2015 China professional manufacturer water pump with diesel engine on sale
-
professional water pump set with diesel engine on sale
-
professional manufacturer water pump set with diesel engine on sale
-
Stamford Newage avr SX460 generator spare parts of generator
-
200kva water pump diesel generator sets powered by famous engine with CE approved
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Kaitong | |
| Model Number | KD-400GF | Output Type | AC Three Phase | |
| Speed | 1500RPM | Frequency | 50Hz | |
| Rated Power | 400kW | Rated Voltage | 220/380V | |
| Rated Current | 936A |
Product Description
Safety
Design, production and testing of the generator sets comply with EU CE safety standard;
Equipped with circuit breaker to avoid possible electric risk at re- startup when engine stops in emergency.
The controller has a historical operation recording function for troubleshooting and inspection.
Powerful Engines
Adopts world-famous engines,with low noise and low emission.
Rugged structure ensures lowest vibration.
Common rail system: (for some models) significantly lowers the combustion temperature, and also leads to cleaner exhaust.
For the turbocharged machines, the carbon dioxide (CO2) emission is reduced.
Control System
Micro-processor cored digital system.
Multiple languages, automatic control.
Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs.
| 1. Specification of genset | ||||||||
| Gensets model | CCFJ400J | |||||||
| Prime power | 400KW | |||||||
| Rated voltage | 400/230V | |||||||
| Rated current | 720A | |||||||
| Rated frequency(HZ) | 50 | |||||||
| Rated speed | 1500rpm | |||||||
| Power factor | 0.8(lagging) | |||||||
| Dimensions(mm) (L×W×H) | 3150×1000×2150 | |||||||
| Genset Weight(kg) | 3950 | |||||||
| 2. Specification of diesel engine | ||||||||
| Engine brand | Cummins | |||||||
| Engine model | KTA19-DM | |||||||
| Number of Cylinders | 6 | |||||||
| Cylinder arrangement | Vertical in-line | |||||||
| Cycle | Four stroke | |||||||
| Air Intake System | Turbocharged and aftercooled | |||||||
| Fuel System | PT type fuel pump | |||||||
| Bore×Stroke (mm×mm) | 159 x 159 | |||||||
| Displacement (Liter) | 19.0 | |||||||
| Compression Ratio | 13.9:1 | |||||||
| Speed Governor | Electronic | |||||||
| Cooling System | By heat exchanger | |||||||
| Fuel Consumption at 100% Load (g/kwh) | 204 | |||||||
| Starting Method | DC24V electrical starting | |||||||
| 3. Specification of alternator | ||||||||
| Alternator brand | Marathon | |||||||
| Alternator model | MX-H-400-4 | |||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP23 | |||||||
| Altitude | ≤1000m | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||
| Insulation Class | H | |||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||
| THF | ≤2% | |||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||
| Transient State Voltage | ≤-15%~+20% | |||||||
| 4. Specification of control system | ||||||||
| • Microcomputer digital control, and reliable work. | ||||||||
| • Digital display of parameters of diesel engine, and integration of measuring and monitoring. | ||||||||
| • Modularization of functional configuration, and ntegration of product structures. | ||||||||
| • Resistance to vibration, humidity, salt mist and high/low temperature. | ||||||||
| • Powerful ability to resist interference, convenient installation and use, and high performance-price ratio. | ||||||||
| • Remote monitoring of running parameters. | ||||||||
| • Automatic zero set of lubricating oil pressure. | ||||||||
| • Accumulation of running period of diesel engine. | ||||||||
| • Automatic shut offs on high temperature & low oil pressure. | ||||||||
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have
distributors all over World that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
Warranty
warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).
1) Valve seat materials are imported special steel, valve use wear-resistant materials and the latest technology.
2) Piston and cylinder head production using new materials, high-performance low-emission hybrid rapid combustion cylinder. Combustion control technology to protect machine film.
3) Change the duration of the ignition control,long-life spark plugs.
4) Intergrated control diagnostics, intergrated approach to control the explosion-proof technology.
1) Valve seat materials are imported special steel, valve use wear-resistant materials and the latest technology.
2) Piston and cylinder head production using new materials, high-performance low-emission hybrid rapid combustion cylinder. Combustion control technology to protect machine film.
3) Change the duration of the ignition control,long-life spark plugs.
4) Intergrated control diagnostics, intergrated approach to control the explosion-proof technology.
