Home > Products > Optical Fiber Jack > optical fiber photo link DQT(R)-009
optical fiber photo link DQT(R)-009
- 10 Piece / Pieces per Month
- SHENZHEN/HK
You May Like
Product Details
| Brand Name | FOSEN | Model Number | optical fiber photo link DQT(R)-009 | |
| Include Display | Yes | Place of Origin | Guangdong, China |
Product Description
Specifications
1.optical fiber photo link DQT(R)-0092.over 10years manufacture
3.ROHS SGS ISO9001/14001
4.Free sample
5.Factory price
optical fiber photo link DQT(R)-009
Optical Fiber Transmitting Module Electro-Optical Characteristics
Parameter | Symbol | Conditions | MIN | TYP | MAX | Unit |
Peak emission wavelength | λp |
| … | 660 |
| nm |
Optical power output coupling with fiber | Pc | Refer to Fig.1 | -21 | -18 | -15 | dBm |
Dissipation current | Icc | Refer to Fig .2 | 3 | … | 7 | mA |
High level inprt voltage | ViH | Refer to Fig .2 | 2.0 | … | Vcc | V |
Low level input voltage | ViL | Refer to Fig .2 | … | … | 0.8 | V |
Low High delay time | tpLH | Refer to Fig .3 | … | … | 100 | ns |
High Low delay time | tpLH | Refer to Fig .3 | … | … | 100 | ns |
Pulse width distortion | tw | Refer to Fig .3 | -15 | … | +15 | ns |
Jitter | tj | Refer to Fig .3 | … | 1 | +15 | ns |
Optical Fiber Receiving Module Electro-Optical Characteristics
Parameter | Symbol | Conditions | MIN | TYP | MAX | Unit |
Peak emission wavelength | λp |
| … | 660 |
| nm |
Receiver input optical power level | Pc | Refer to Fig.3 | -24 | … | -13.5 | dBm |
Dissipation current | Icc | Refer to Fig .2 | 3 | … | 7 | mA |
High level inprt voltage | VoH | Refer to Fig .1 | 2.1 | … | … | V |
Low level input voltage | VoL | Refer to Fig .1 | … | 0.2 | 0.4 | V |
Rise time | tr | Refer to Fig .1 | … | 8 | 20 | ns |
Fall time | tr | Refer to Fig .1 | … | 8 | 20 | ns |
Low High delay time | tpLH | Refer to Fig .1 | … | … | 100 | ns |
High Low delay time | tpLH | Refer to Fig .1 | … | … | 100 | ns |
Pulse width distortion | tw | Refer to Fig .1 | -15 | … | +15 | ns |
Jitter | tj | Refer to Fig .1 | … | … | 15 | ns |
Mechanical Characteristics(Ta=25°C)
Parameter | Symbol | Conditions | MIN | TYP | MAX | Unit |
Insertion and Withdrawal Force | Fp | *1 | 3.9 | … | 40 | N |

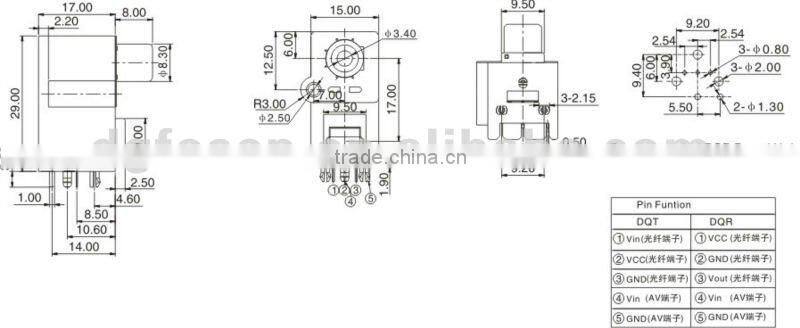

Diagram:
Why Choose us? Our advantages.
1.Since 2002,Years' experience of Manufacture.
2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
3.Original manufacturer with direct factory price, Competitive & Fashionable.
4.High Standard management for quality control.
5.Small order acceptable: 1000pcs per product.
6.Safe payment terms: T/T, Western Union, Paypal are available.
7.Prompt Delivery & Lowest shipping cost : We can get low discount from DHL, Fedex, UPS, TNT, EMS,etc.
8.OEM, ODM available, Customers' designs are warmly welcome.
9.Got good reputation both at home and abroad. Long-term Supplier for Customers' reference.
10.Excellent Service.

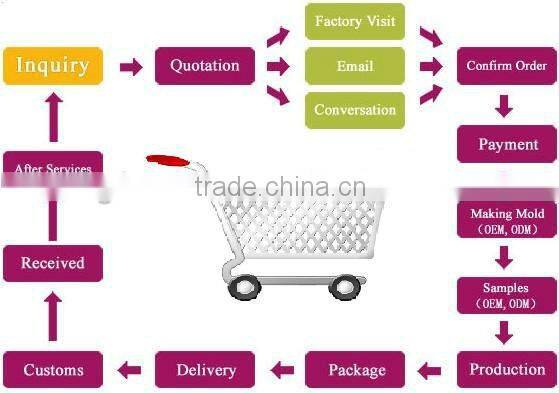

How to order?
Quotation → Invoice → Payment → Making mold → Samples → Production → Package → Delivery → Customs → Received
Dongguan Fosen Electronics Technology Co.,Ltd.
(Our factory was established in 2002) is the Tact switch phone jack fiber terminal and computer connectors manufacturer which collection of development, design, production and sale. If you are interested in any of our products, please feel free
to visit our website or contact us directly for more information. We also welcome
any customer design (OEM&ODM) or sample.
