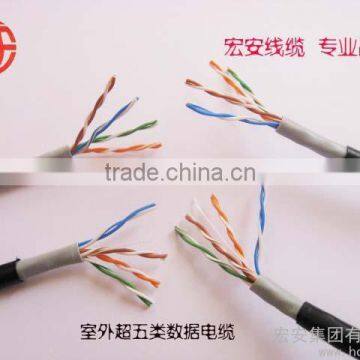

26awg cat5e ethernet lan cable price per meter
- Qingdao
- T/T
You May Like
-
300 pairs jelly filled telephone Cables with OFC,oxygen free copper price
-
50pairs/100 pairs underground jelly filled telephone Cables price per meter
-
utp cat3/cat5/cat6 25 pair solid copper lan USB cable price
Supplier's Choice
-
12 core steel tape armored buried or aerial fiber optic cable
-
UTP Cat5 25 pairs indoor symmetrical pair cables
-
Hot sale! FTP Cat5e data communication lan cable price
Product Details
| Place of Origin | Shandong, China | Brand Name | Hongan | |
| Model Number | HSYVP5E | Type | Cat 5e | |
Product Description
Specifications:
1) Resistance (max): 9.50ohm/100m at 20°C
2) D.C. resistance unbalanced (max): 2.5%
3) Mutual capacitance (max): 5.6 nF/100m
4) Capacitance unbalanced (max): 330pF/100m
5) Impedance:1-100MHz 100±15ohm
6) Differential phase delay(max):30ns/100m;
7) Operating temperature:-20~+60°C
8) Permitted bend radius:10times diameter of the cable.
9) Pairs colors: a) White/blue b) White/orange c) White/green d) White/brown
10) Materials: a) Conductor: 26 AWG copper
b) Insulation: solid HDPE
c) Sheath: PVC/PE/LSNHP
Packing:
1,000 feet (305m) per box per wooden reel or Custom order lengths are available upon request
Application:
10 Base-T
100Base-T4
100Base-TX
100Base-VG-ANYLAN
155Mbps ATM
622 Mbps ATM
1000Base-T
Standards:
ISO/IEC11801
ANSI/TIA/EIA-568-B.2
Features of product:
1.more bandwith excess than 100MHz standard required;
ply with ROHS standard;
3.the products of special outer sheath or purpose can be designed according to customer's demands.
Cable structure:
Transmission performance:
frequency | attenuation | NEXT | PSNEXT | ELFEXT | RL | PHASE VELOCITY | PHASE DELAY |
1 | 2 | 65 | 62 | 64 | 20 | 0.585c | 570 |
4 | 4.1 | 56 | 53 | 52 | 23 | --- | 552 |
10 | 6.5 | 50 | 47 | 44 | 25 | 0.611c | 545 |
16 | 8.2 | 47 | 44 | 40 | 25 | --- | 543 |
20 | 9.3 | 46 | 43 | 38 | 25 | --- | 542 |
31.25 | 11.7 | 43 | 40 | 34 | 24 | --- | 540 |
62.5 | 17 | 38 | 35 | 28 | 22 | --- | 539 |
100 | 22 | 35 | 32 | 24 | 20 | 0.620c | 538 |
