double sheath 48 core optical fiber cable

FOB Price

US$ 0.1 - 9 / Meter

1000 Meters(Min. Order)

Port Qingdao port
Payment TermsT/T Credit Card PayPal T/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	hongan
Model Number	GYTA53	Conductor Material	Other, FIBER
Insulation Material	Other, PBT	Jacket	PE
Number of Conductors	2-216	Application	direct buried, direct buried

Product Description

Specifications

1)27 years experience
2) CE,ROHS,ISO9001,ISO14001,ISO18000
3) IEC 60794,IEC60793
4) FOB price:$0.1-9/meter
5)MOQ:1KM

Characteristics of product:

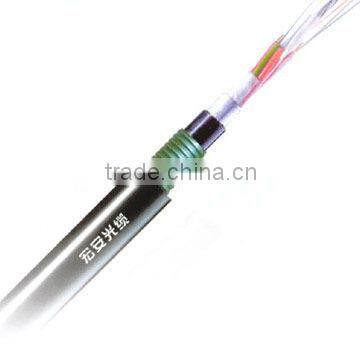

1.structure with aluminium tape against moisture, corrugated steel tape as armour,loose tube stranding and double sheaths;
2.loose tube material has good hydrolysis resistance performance and high strength;
pact structure, excellent water-blocking performance;
4.strict manufactureing processes.good mechanical performance and environmental properties.

Applications:
buried,cable trench,etc;
relay communication system;
core network, metropolitan area network and access network etc.

Temperature:
operating temperature:-40°C~+70°C

Standards:
IEC811,IEC60794,IEC60793

Optional:
1.the structure diameter can be designed for customers;
2.to design flame resistance, anti-rodent, anti-ant cable according to the customers' demands.

Cable structure:

Structural parameters:

fiber count	nominal diameter (mm)	nominal weight (kg/km)	permitted tensile LT/ST(N)	permitted crush LC/SC (N)	bend radius static state/dynamic state (mm)
2-36	14	211	600/1500(1000/3000)	300/1000(1000/3000)	12.5D/25D
38-60	15.2	238	1000/3000	1000/3000	12.5D/25D
62-72	15.8	249	1000/3000	1000/3000	12.5D/25D
74-96	17.3	295	1000/3000	1000/3000	12.5D/25D
98-120	18.8	336	1000/3000	1000/3000	12.5D/25D
122-144	20.3	390	1000/3000	1000/3000	12.5D/25D
146-216	20.5	409	1000/3000	1000/3000	12.5D/25D

Product lines:

Test equipments:
