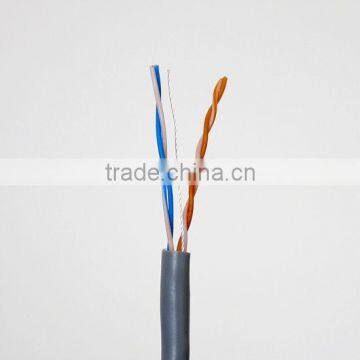

top quality best price utp pvc 2x2 lan cable cat5e
- qingdao port
- T/T L/C D/P D/A Credit Card PayPal T/T
You May Like
-
2x2 utp pvc/lszh cat.5e eia tia 568b network lan cable
-
100% copper utp cat5e 2pr network computer lan cable brands
-
cheaper price high quality 2x2 pvc /lszh 568b utp cat5e 100m/roll lan cable
-
high speed cat5e utp pvc 2pairs lan cable
-
100% copper utp pvc insulation cat5e lan cable
-
2x2 pr pvc/lszh cat5e lan cable utp
Product Details
| Place of Origin | Shandong, China | Brand Name | hongan | |
| Model Number | HSYV5e-2 | Type | Cat 5e | |
| Number of Conductors | 2 |
Product Description
Specifications
1.27 years experience2. ISO9001,ISO14001
3.IEC11801,EIA-568B
4.Mini. Order: customer's demand
5.FOB price:$0.01-8/meter
Specifications:
1) Resistance (max): 9.50ohm/100m at 20°C
2) D.C. resistance unbalanced (max): 2.5%
3) Mutual capacitance (max): 5.6 nF/100m
4) Capacitance unbalanced (max): 330pF/100m
5) Impedance:1-100MHz 100±15ohm
6) Differential phase delay(max):30ns/100m;
7) Operating temperature:-20~+60°C
8) Permitted bend radius:10times diameter of the cable.
9) Pairs colors: a) White/blue b) White/orange c) White/green d) White/brown
10) Materials: a) Conductor: 24 AWG copper
b) Insulation: solid HDPE
c) Sheath: PVC/PE/LSNHP
Packing:
1,000 feet (305m) per box 500m - 1000m per wooden reel Custom order lengths are available upon request
Application:
10 Base-T
100Base-T4
100Base-TX
100Base-VG-ANYLAN
155Mbps ATM
622 Mbps ATM
1000Base-T
Standards:
ISO/IEC11801
ANSI/TIA/EIA-568-B.2
Features of product:
1.more bandwith excess than 100MHz standard required;
ply with ROHS standard;
3.the products of special outer sheath or purpose can be designed according to customer's demands.
Cable structure:
Transmission performance:
| frequency (MHz) | attenuation (Max) (dB/100m) | NEXT (Min.) (dB/100m) | PSNEXT (Min.) (dB/100m) | ELFEXT (Min.) (dB/100m) | RL (Min) (dB) | PHASE VELOCITY (Min)(m/s) | PHASE DELAY (Max) (ns/100m) |
| 1 | 2 | 65 | 62 | 64 | 20 | 0.585c | 570 |
| 4 | 4.1 | 56 | 53 | 52 | 23 | --- | 552 |
| 10 | 6.5 | 50 | 47 | 44 | 25 | 0.611c | 545 |
| 16 | 8.2 | 47 | 44 | 40 | 25 | --- | 543 |
| 20 | 9.3 | 46 | 43 | 38 | 25 | --- | 542 |
| 31.25 | 11.7 | 43 | 40 | 34 | 24 | --- | 540 |
| 62.5 | 17 | 38 | 35 | 28 | 22 | --- | 539 |
| 100 | 22 | 35 | 32 | 24 | 20 | 0.620c | 538 |
Product lines:
Test equipments:
