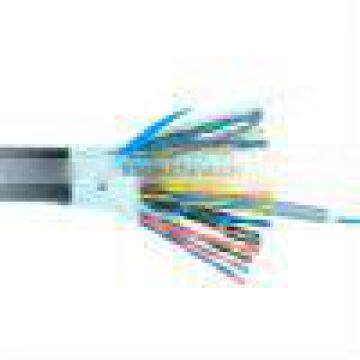

best price100pairs cat5/cat6 utp lan cable
- qingdao port
- T/T L/C D/P D/A Credit Card
You May Like
-
utp outdoor cat3 passing fluke testing network cable
-
high speed high quality ca3 twisted solid pe insulaed utp ethernet cable
-
multi pairs twisted lan networking cable used for trunk
-
best price utp cat3/cat5/cat6 25 pair solid lan cable
-
25 pair cat3/cat5 best price telephone lan utp cable
-
25 pairs full copper lan network cable
Product Details
| Brand Name | hongan | Model Number | HSYY3 | |
| Place of Origin | Shandong, China | Use | Other, Computer |
Product Description
Specifications
1.27 years experience2. ISO9001,ISO14001
3.IEC11801,EIA-568B
4.Mini. Order: customer's demand
5.FOB price:$0.01-8/meter
Applications:
10Base-T,10Base-T4
Standards:
ISO/IEC11801,ANSI/TIA/EIA-568-B(International standards: ISO/IEC11801,ANSI/TIA/EIA-568-B)
Features of Product
Comply with the ROHS Standards;
Many kinds of sheath can be designed
according to the environmental demands;
Special design for trunk voice transmission;
Clear labels be convenient for fixing.
parameters:
structure | (conduct diameter) mm | (single pure copper) | Diameter of Single Copper Wire | mm insulated diameter | (HDPE) | Diameter of Insulated Wire |
UTP | 0.4/0.48 | 0.7/.86 | 25 | (Naught) | PE/PVC/LSZH | 9.6±1.0 |
UTP | 0.4/0.48 | 0.7/.86 | 50 | (Naught) | 14.4±1.0 | |
UTP | 0.4/0.48 | 0.7/.86 | 100 | (Naught) | 18.6±1.0 |
Notes: PE- Polyethylene; PVC- Polyvinyl chloride; LSZH-Low Smoke Zero Halogen; Grades of PVC Fire Resistance CMX,CM,CMR and CMP
Physical and Electrical Characteristics
Impedance: 1-16MHz 100±15Ω
Max. Mutual Capacitance: 6.6nF/100m
Max. Unbalanced DC resistance: 2.5%
Max. Differential phase delay: 45nF/100m
Permitted bend radius: 10 times diameter of the cable
Fixing temperature: 0~+55°C
Operating temperature: -20°C~+60°C
Max. Tension: 80N
Min. Dielectric Strength Between Conductors: 1.0kV/min
Transmission Performance
Frequency (MHz) | IL-Max (dB/100m) | NEXT-Min (dB/100m) | PSNEXT-Min (dB/100m) | ELFEXT-Min (dB/100m) | RL-Min (dB) |
1 | 2.6 | 41 | 41 | 39 | 12 |
4 | 5.6 | 32 | 32 | 27 | 12 |
10 | 9.7 | 26 | 26 | 19 | 12 |
16 | 13.1 | 23 | 23 | 15 | 10 |
structure:
product line:
test equipments:
