Non-armored Aerial 2 Pair Telephone Cable
- qingdao port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | hongan | |
| Model Number | HYA | Application | Other, Telecommunication, aerial, duct | |
| Conductor Material | Copper | Jacket | PE | |
| Insulation Material | PE |
Product Description
Specifications
1.27 years experience2. ISO9001,ISO14001
3.IEC708,PE-22,ANSI/ICEAS-84-608
4.Mini. Order: 500meters
5.FOB price:$0.2-5/meter
Specifications:
1) Type: HYA
2) Size: 5 - 2,400 pairs
3) Executive standard: .IEC708,PE-22,ANSI/ICEAS-84-608
4) Referred standard: ISO9001
Features:
1) Structure: annealed copper conductor, solid polyolefin insulation, polyester coated aluminum tape (PAP) longitudinally wrapped,
PE sheathed local communication cable
2) Installation temperature: not lower than -5°C
3) Operation temperature: -30°C - +60°C
4) Minimum bending radius: not less than 15 times the outer diameter when the outer diameter is 40mm or less and not
less than 20 times the outer diameter when the outer diameter larger than 40mm
5) Usage: transmitting audio frequency signals, analog signals up to 150kHz or digital signals up to 2,048kbps
6) Application mode: aerial ,duct
Inner packing:
non-wooden-iron composite drums, strong enough for handling, long distance shipment and storage or according to customer's requirement.
Outer packing:
non-wooden battens used to protect the drummed cable or metal tape secured outside

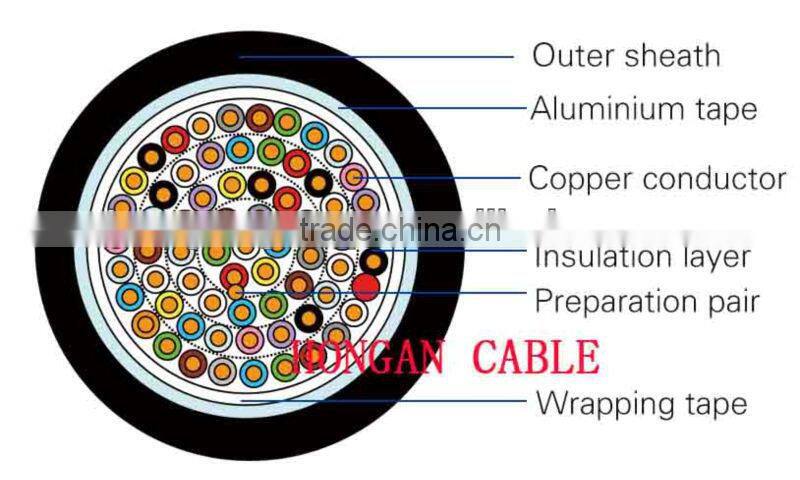

structure:

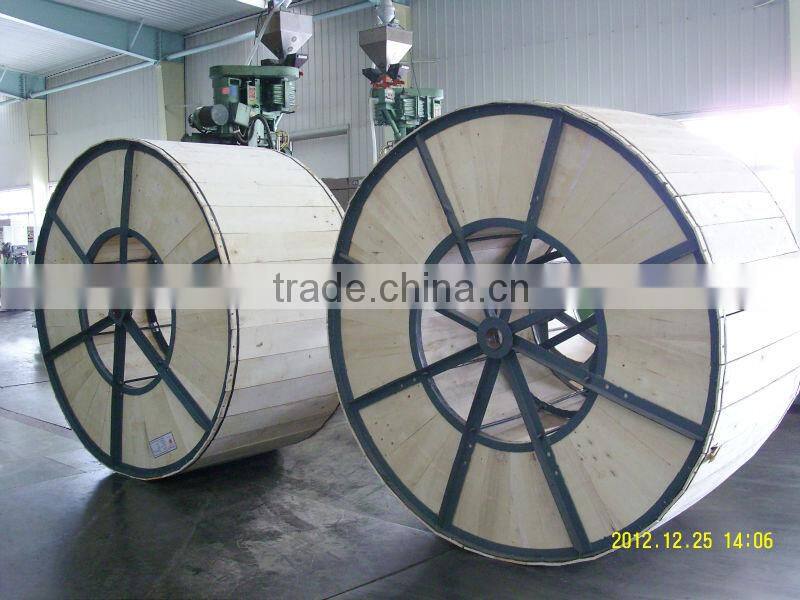

export package:

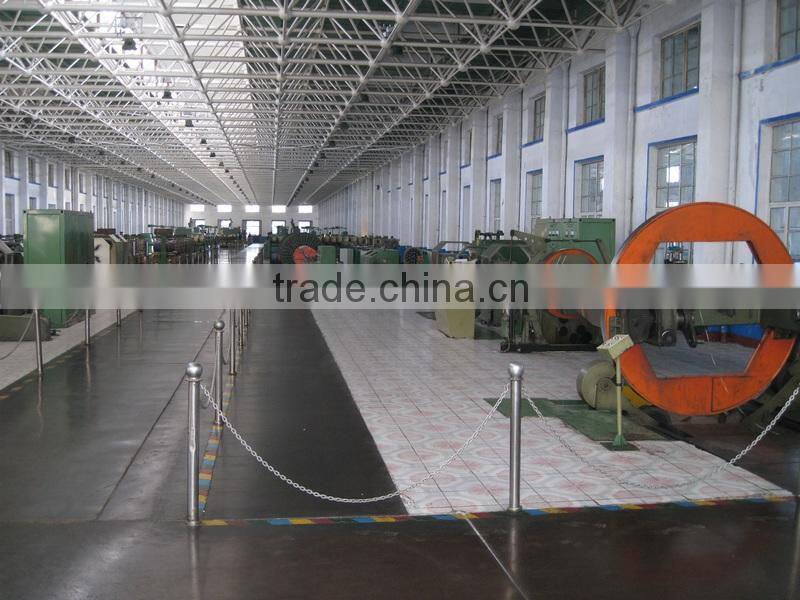

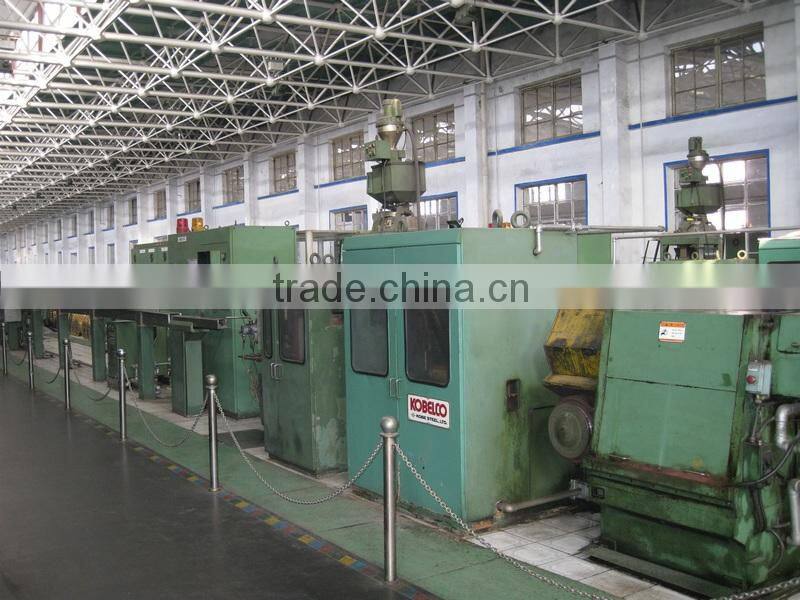

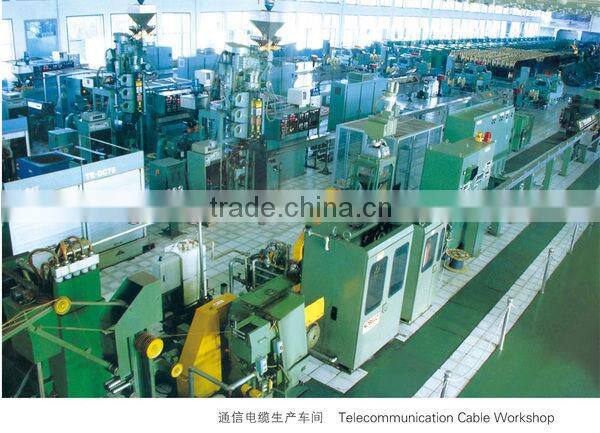

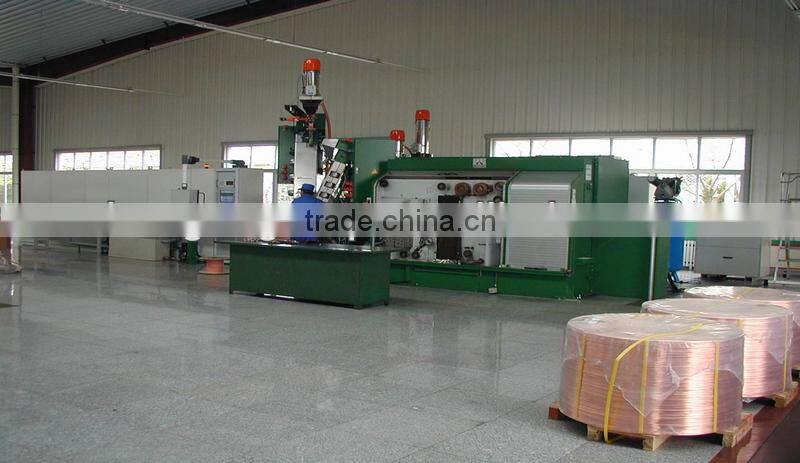

product lines:

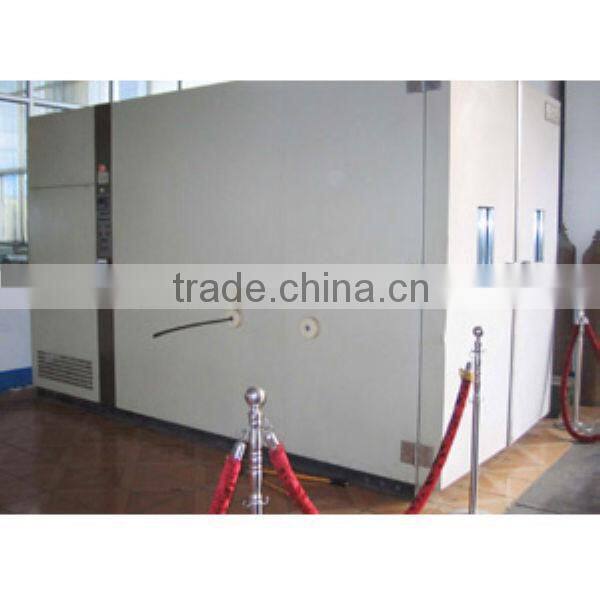

test equipments:
