Product Details
| Standard | AISI, BS, GB, JIS | Steel Grade | Q195 | |
| Thickness | 0.05MM-2.00MM | Place of Origin | Shandong, China | |
| Technique | Cold Rolled | Surface Treatment | Galvanized | |
| Application | Packing,Machine/Manual Packing | Model Number | SGCC, SGCD/DX51D+Z/ DX52D+Z/ DX53D+Z | |
| Brand Name | HUA RUI DE | Width | 10MM-500MM | |
| Length | In Coils |
Product Description
Specifications
1. Thickness: 0.05mm-2.00mm2. Width: 10mm-500mm
3. Zinc coating: 20g-180g /m2
4. ID and weight: as requirements
1. Certification
a. Strong corrosion resistance b. Surface quality
c. Conducive to deep processing d. Economy and practicality
2. Product description
Manufacturer | HUA RUIDE STEEL—Galvanized Steel Strip |
Grade | Q195/215/235B/345B/20Mn steel SGCC DX51D DX53D DX54D |
Standard | GB AISI ASTM BS DIN JIS |
Thickness | 0.05 MM - 2.00 MM |
Width | 10 MM – 500 MM |
Zinc Coating | 30g/m2 - 180g/m2 |
Length/weight | Depend on the coil |
Inner Diameter | Ribbon wound=200mm/300mm/406mm Oscillated wound=406mm |
Tensile Strength | 280 – 430 Mpa |
Technique | Hot rolled/Cold rolled- Galvanized (Zinc coated) |
Spangle State | Mini/Regular/Big/Zero spangle |
Surface Treatment | Chromate treatment /Chromate-free treatment Untreated Un-oiled/Oiled Anti-fingerprint/Un-Anti-fingerprint Coating, Color,Bluing treatment, Heat Treatment |
Note:We can produce special specification as per customer request, and we can make the edge smoother of the steel packing strips. | |
Tolerances | Width | ≤31.75mm | ±0.10mm |
>31.75mm | ±0.13mm | ||
Thickness | ≤0.40mm | ±0.015mm | |
>0.40—0.70mm | ±0.020mm | ||
>0.70—1.30mm | ±0.025mm | ||
Note: the thickness of steel strip does not include the coating or the thickness of the max. | |||
Technical Parameters | Ordinary steel strapping | σb≥65-75kg/mm2(650-750Mpa), elongation:δ5≥3%-5% |
Ordinary steel strapping | σb≥75-85kg/mm2(750-850Mpa), elongation:δ5≥4%-6% | |
High quality steel strapping | σb≥85-1000kg/mm2(8501000Mpa), elongation:δ5≥5-8% |

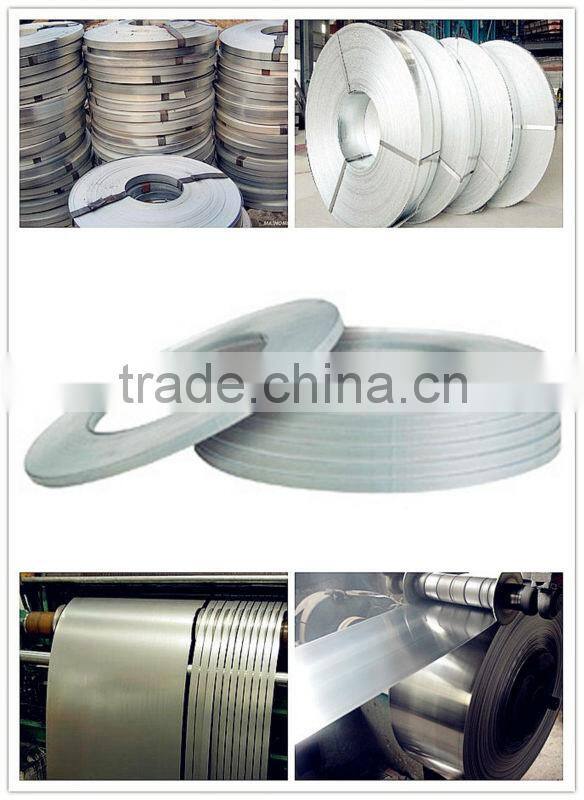

3. Product show
4. Product line
5. Package: Standard seaworthy packing, wooden or iron pallets Bundles
a). inner is water-proof wax paper
b). middle is plastic film
c). outer is sackcloth or compound paper 2 or 3 small coils per bundle
(Inner diameter is 200mm&300mm)
6. Load and transport:
7. Color: Black, Gray, Green, White, etc
8. Application of our PPGI/GI
Galvanized steel strip products are mainly used in construction, light industry, auto industry, agriculture, animal husbandry and fishery, and commercial.
a) Welded steel pipe and cold bend section steel billet, manufacturing bicycle frame, wheels, clamp, washer, spring leaf, saw blade, metal products and blades, etc.
b) Construction industry is mainly used in the manufacture of corrosion resistance of industrial and civil construction roof panel, roof grille, etc;
c) Light industry with its manufacturing home appliance shell, civil chimney, kitchen utensils, etc;
d) Auto industry is mainly used in the manufacture of car corrosion resistant parts, etc;
e) Agriculture animal husbandry and fishery is mainly used for food storage, meat and frozen aquatic products processing equipment, etc;
f) Commercial is mainly used as a material handling, packaging equipment, etc.
9. The superiority of product:
(1).Increased supporting strength (2).Reduced project cost (3).Light weight
(4).Easy and fast for installation (5).Durable: 12-20 years (6).Multifold color choices
(7). Non-pollution technology, Moisture resistance, Corrosion resistance, Weather fastness Beautiful designed
10. Payment terms:20%TT in advance+80% TT or irrevocable 80%L/C at sight
