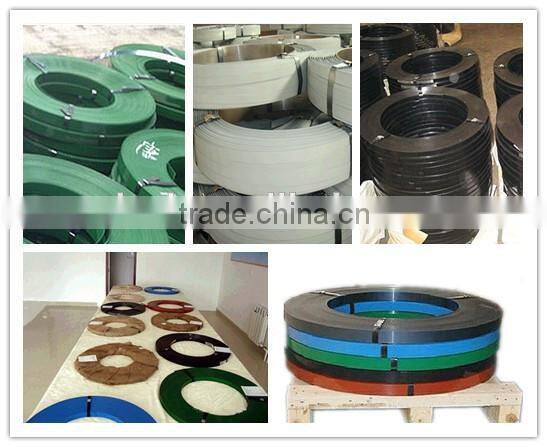

Hua Ruide Steel- Coating Paint Steel Strip Packing-Any Color-Tensile Strength of Steel Strip

Manufacturer

HUA RUIDE STEEL— Galvanized Hoop Iron for Packing

Grade

Q195/215/235B/345B/20Mn steel

SGCC DX51D DX53D DX54D

Standard

GB AISI ASTM   BS   DIN   JIS

Thickness

0.6MM - 2.00 MM

Width

10 MM – 50MM

Zinc Coating

30g/m² - 180g/m²

Length/weight

Depend on the coil

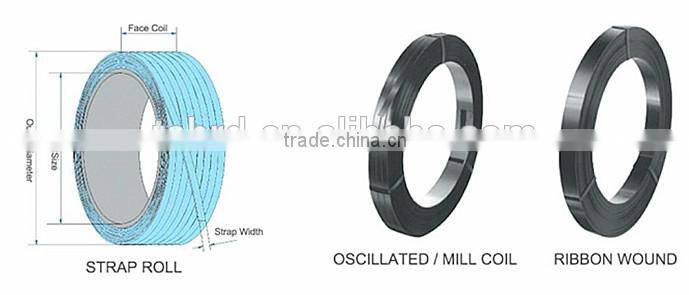

Inner Diameter

 Ribbon wound=200mm/300mm/406mm

 Oscillated wound=406mm

Tensile Strength

685/735/785/880/930 Mpa

Technique

Hot rolled/Cold rolled- Galvanized (Zinc coated)

Spangle State

Mini/Regular/Big/Zero spangle

Surface Treatment

Chromate treatment /Chromate-free treatment Untreated Un-oiled/Oiled

Anti-fingerprint/Un-Anti-fingerprint

Coating, Color,Bluing treatment, Heat Treatment

Note:We can produce special specification as per customer request, and we can make the edge smoother of the steel packing strips.

BWG28X3/8", 1/2", 5/8"

0.36MMX9.5MM,  12.7MM,  16MM)

BWG27X3/8", 1/2", 5/8"

0.40MMX9.5MM,  12.7MM,  16MM)

BWG26X1/2", 5/8", 3/4"

(0.45MMX12.7MM,  16MM,  19MM)

BWG25X1/2", 5/8", 3/4"

(0.50MMX12.7MM,  16MM,  19MM)

BWG24X1/2", 5/8", 3/4"

(0.55MMX12.7MM,  16MM,  19MM)

BWG23X1/2", 5/8", 3/4"

(0.60MMX12.7MM,  16MM,  19MM)

BWG22X3/4",  1", 5/4"

(0.70MMX19MM,  25.4MM,  32MM)

BWG21X3/4",  1", 5/4"

(0.8MMX19MM,  25.4MM,  32MM)

BWG20X3/4",  1", 5/4"

(0.9MMX19MM.  25.4MM,  32MM)

BWG19X3/4",  1", 5/4" 3/2" 2"

(1.0MMX19MM,  25.4MM,  32MM  40MM  51MM)

BWG18X3/4",  1", 5/4" 3/2" 2"

(1.2MMX19MM,  25.4MM,  32MM  40MM  51MM)

BWG17X3/4",  1", 5/4" 3/2" 2"

(1.5 MMX32MM  40MM  51MM)

BWG16X3/4",  1", 5/4" 3/2" 2"

(1.65 MMX32MM  40MM  51MM)

Tolerances

Width

≤31.75mm

±0.10mm

>31.75mm

±0.13mm

Thickness

≤0.40mm

±0.015mm

>0.40—0.70mm

±0.020mm

>0.70—1.30mm

±0.025mm

Note: the thickness of steel strip does not include the coating or the thickness of the max.

Technical Parameters

Ordinary steel strapping

σb≥65-75kg/mm2(650-750Mpa),

elongation:δ5≥3%-5%

Ordinary steel strapping

σb≥75-85kg/mm2(750-850Mpa),

elongation:δ5≥4%-6%

High quality steel strapping

σb≥85-1000kg/mm2(8501000Mpa),

elongation:δ5≥5-8%
