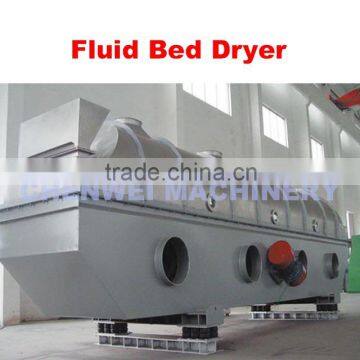

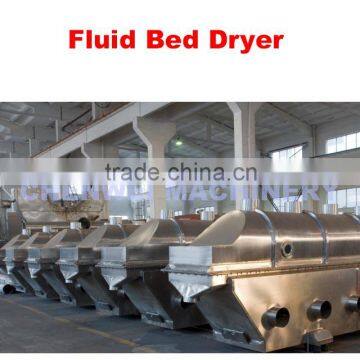

Industrial Fluid Bed Dryer for Salt

Working principle

The fluid bed dryer consist of feeding device,trough,cover, vibrating motor,damping device,cyclone,blower,air filter,heat exchange,bag filter,piping,burner etc.
Raw material is feed into the machine from and move forward continuously along with the horizontal direction under the force of vibrating motor. The hot air passes through fluidized-bed and exchange heat with raw materials , then the wet air is dusted by cyclone separator and exhausted from air outlet, the dried material is discharged through outlet.

Features

1, Raw material is heated uniformly with high efficiency and heating exchange.Compared with ordinary dryer,it can save 30% energy.
2, Easy to operate and clean,low noise
3, Fluid state is stable, no pollution and destructive factor.
4, Easy regulation and wide suitability. Inside the machine, raw materials thickness,  moving speed and amplitude change can be adjusted.
5, Small damage to raw materials surface.It is suitable for fragile material,granules and irregular shape material.
6, This machine is whole sealed structure,it is effective to prevent cross contamination from air and raw material.

Application

CWBD fluid bed dryer can be widely used for drying and cooling the materials in the pharmaceutical, food, nourishment, chemical, pesticide, plastic, grain and oil, slag, salt manufacturing, sugar and other industries. The materials include all kinds of additives, chicken powder, gourmet powder, granulated sugar, salt, mineral powder, dispersing agent and so on.
