China Top Quality Cable Drawing Reels
US$ 9 - 590
/ Piece
1 Piece(Min. Order)
- Tianjin/Qingdao/Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
High Quality Electric Shaking Table Used for Bulk Materials /Vibrating Table
-
High Quality Electric Shaking Table Vibrating Table For Material Compacting
-
Chemical and Bulk Materials Used Electric Shaking Table Quality Choice
-
Transportation Vibration Test Machine Automobile Vibration Table
-
Scrap Electrical Cable Recycling Equipment
-
China Top Quality Metal Wire Spools
Product Details
| Place of Origin | Henan, China | Brand Name | CWJX | |
| Model Number | PND1000-4500 |
Product Description

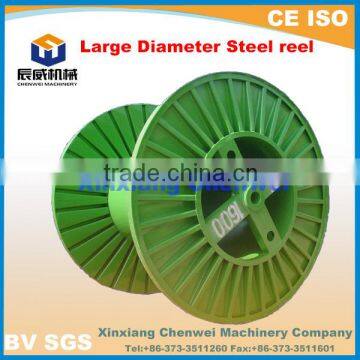

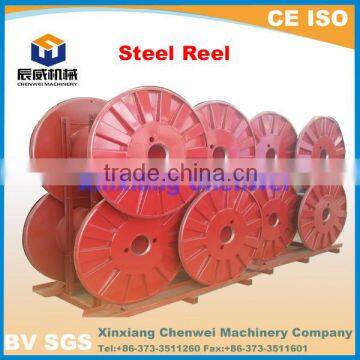

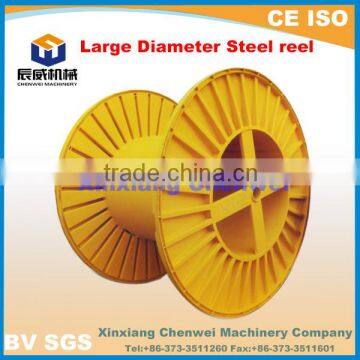

Cable drawing reels
Speciafication:
1.Cable drawing reels
2.Curly edge for increased strength
3.Enough stiffening ribs for flange sturdiness
4.OEM service & Customized design available
The cable drawing reels are manufactured for use with cabling machinery and extrusion machinery. The reels are designed for in house processing and shipping requirements etc.
Application: for cable .steel wire,steel rope,copper wire,aluminum wire and welding wire etc
Production standards:GB4004-83 JB/T8997.4-1999 DIN46397
Technical data of cable drawing reels :
| Model | d 1 | d 2 | d 4 | d 5 | e | L 1 | L 2 | Vdm 3 |
| 1000 | 1000 | 500/560 | 80 | 40 | 160 | 710 | 560 | 330.0/302.0 |
| 1120 | 1120 | 560/630 | 800 | 630 | 466.0/424.0 | |||
| 1250 | 1250 | 630/710 | 591.6/523.7 | |||||
| 1400 | 1400 | 710/900 | 65 | 300 | 950 | 750 | 857.6/677.4 | |
| 1600 | 1600 | 900/1000 | 1120 | 900 | 1237.0/1102.7 | |||
| 1800 | 1800 | 1000/1250 | 80 (125) | 1400 | 1120 | 1970.4/1475.6 | ||
| 2000 | 2000 | 1000/1400 | 125 | 2638.7/1795.4 | ||||
| 2240 | 2240 | 1250/1800 | 3039.3/1563.7 | |||||
| 2500 | 2500 | 4123.4/2647.7 | ||||||
| 2800 | 2800 | 1800 | 160 | 500 | 1700 | 1400 | 5058.0 | |
| 3150 | 3150 | 2000 | 2000 | 1600 | 7442.0 | |||
| 3550 | 3550 | 2360 | 2000 | 1600 | 8837.0 | |||
| 4000 | 4000 | 2800 | 200 | 80 | 1000 | 2240 | 1800 | 11535.0 |
| 4500 | 4500 | 3000 | 2500 | 2000 | 17671.0 |

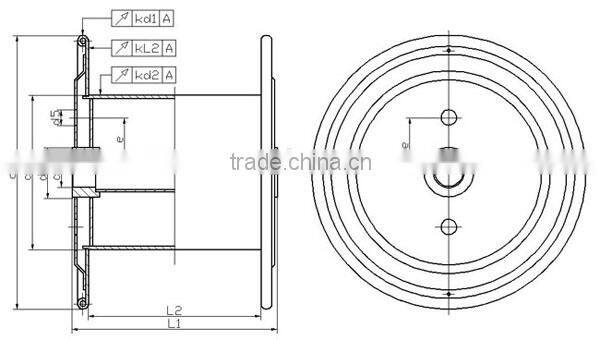

Drawing of cable drawing reels
Our Services
- Customized design available
- Short delivery time
- MOQ 1PC
- OEM service available

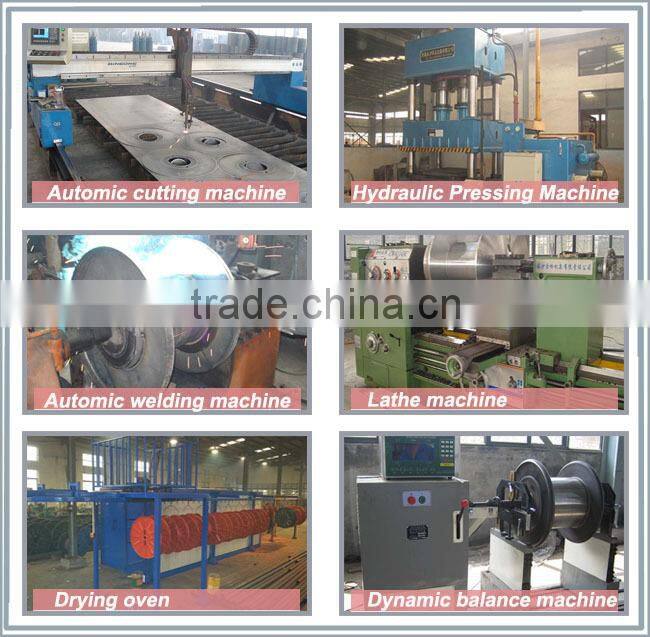

Production Flow
