Professional Cobble sealer paver
USD $180,000 - $200,000
/ Set
1 Set(Min.Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Yihong | Model Number | YH5314TFC | |
| Dimension(L*W*H) | 11990 x 2500 x 3860mm | Weight | 31000kg | |
| Power(W) | 276KW | Certification | 3C,CE,ISO9001,SGS | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

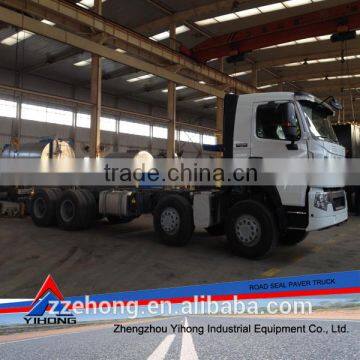

14m3 sino truck chip spreader overview
The 14m3 sino truck chip spreader is used for chip sealing the surfaces of roads and coating and waterproofing bridges. Asphalt binder spraying and aggregate spreading are performed synchronously so they achieve maximum cohesion.
The asphalt sealer is researched and developed independently, earning proprietary intellectual property rights for its advanced technology. Improving the design, we have enlarged the asphalt tank to 8 m³. This 14m3 sino truck chip spreader can spread chips without lifting the hopper, which allows it to be used in narrow spaces, such as under bridges or around curves. A strong agitator in the asphalt tank prevents the asphalt rubber from separating into liquids and solids and solids. The pavement chip sealer incorporates mechanical, electric and hydraulic systems in one machine, simplifying the operating process.
14m3 sino truck chip spreader for sale features
1. The 14m3 sino truck chip spreader reduces the intensity of labor intensity, initial budget, and human resources while improving work efficiency and quality.
2. The road maintenance equipment derives force from the tractor so it runs stably and sprays evenly.
3. Features good insulation, temperature drops that are ≤2℃/h(15℃), corrosion-resistance and durability.
4. High precision nozzles ensure spraying consistency.
5. Remote control features make the chip sealing equipment easy and convenient to operate 14m3 sino truck chip spreader technical paramenter
Product Model | YH5314TFC |
Chassis Model | ZZ3317N4667D1 |
Spray Width | 3800mm |
Spray Volume | 0.2-3.0kg/m3 |
Aggregates Size | 3-25mm |
Asphalt Tank | 8m3 |
Aggregate Hopper | 14m3 |
Heater | Imported Diesel Heater(2x10x104kCal/h) |
Spray Medium | Hot(modified)Asphalt, Cutback, Emulsion Asphalt Rubber |
Gross Vehicle Weight | 31000kg |
Dimension | 11990x2500x3860 |
14m3 sino truck chip spreader key components
| NO | NAME | BRAND | QTY | PLACE OF ORIGIN |
| 1 | Asphalt pump | Johnson | 1 | Belgimu |
| 2 | Heat oil pump | Johnson | 1 | Belgium |
| 3 | Transfer case | Yijie | 1 | China |
| 4 | Encoder | Koyo | 1 | Japan |
| 5 | Burner | Beckett | 2 | America |
| 6 | Vechicle dedicated controller | Yingzhijie | 3 | China |
| 7 | Velocity radar | Dickey-john | 1 | American |
| 8 | Tough screen | Xinjie | 1 | China |
| 9 | HD camera | Aokaipu | 2 | China |
| 10 | Servo pump | Sauer-Danfoss | 1 | American |
| 11 | Lifting hydraulic cylinder | Haizhanli | 1 | China |
| 12 | Gear motor | TJ | 1 | China |
| 13 | Cycloid motor | Eaton | 1 | America |
| 14 | Cycloid motor | Sauer-Danfoss | 1 | America |
| 15 | Radia piston motor | Seat | 1 | Italy |
| 16 | Hyduaulic cylinder | Steady | 1 | China |
| 17 | Integrated control valve | Hydra Force | 2 | America |
| 18 | One-way throttle valve | Tognella | 4 | Italy |
| 19 | Radiator | AKG | 1 | Germany |
| 20 | Double directional hydraulic lock | Tognella | 2 | Italy |
14m3 sino truck chip spreader workshop
