dogbone for transformer
- Qingdao & Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | TID-Tech |
Product Description
Transformer insulation parts series of our company mainly including insulation sheet, I-shape, corner piece and so on. It could be classified as class F, H and C according to temperature resistant.
1.Application:

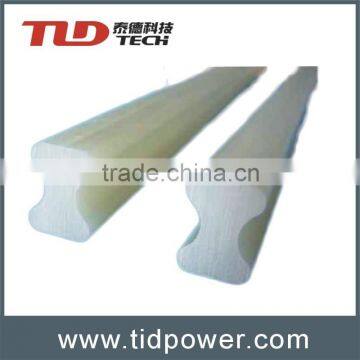

FRP insulation material,with profile of dogbone,is used in Transformers.
2.Raw Materials:
Fiberglass, Epoxy Resin, Curing agent.
3.Temperature Class: F & H.
4.Test :
SGS, National tests, UL94-V0
5.Dimension:
| ||||||
No. | Item No. | A mm | B mm | Length L,mm | Class | Color |
1 | TID6*6 | 6 | 6 | On request | F
H
C | White Yellow Red Of color On request |
2 | TID7*7 | 7 | 7 | |||
3 | TID7*7 | 7 | 7 | |||
4 | TID10*10 | 10 | 10 | |||
5 | TID12*12 | 12 | 12 | |||
6 | TID14*14 | 14 | 14 | |||
7 | TID16*16 | 16 | 16 | |||
Note:Please indicate item No.,color and temperature class .We can design and manufacture based On customers’ request. | ||||||
Based on productive technology and long time experience, the advantages of our product as following:
1. High mechanical strength.
2. High grade of temperature resistant.
3. Smooth and elegant surface.
Features of JHFRP Square Tubes:
- Corrosion Resistant
- Low Conductivity - Thermally and Electrically
- Non-Magnetic - Electromagnetic Transparency
- Light Weight and High Strength
- Dimensional Stability
- Low Maintenance
1 | Density | ≥1.92g/cm3 |
2 | Bending Strength | 360MPa |
3 | Tension Strength | 320MPa |
4 | Insulation Resistance | ≥5*104 Ω.M |
5 | Surface Flashover Voltage | ≥12kV |
