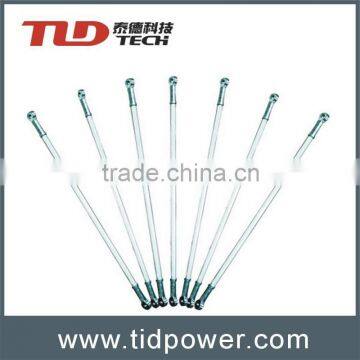

PTFE Coated Stay Insulator
- Qingdao/Tianjin/Shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | TID-Tech | |
| Model Number | TIPTFE-1-0001 | Type | Insulator | |
| Material | Composite Polymer | Application | High Voltage | |
| Rated Voltage | 10kV-500kV |
Product Description
1.TID offer the full solution for the customer
We can design the stay insulator according to the customers’ requirement within the range below.
1.1 Applied Standard:IEC61109,GB19519-2004,JB/T8460-1996 ;
1.2 Voltage Range:10KV-500kV;
1.3 Tensile Load Range:50KN-430KN;
1.4 Coating Material: Polytetrafluoroethylene , Silicon Rubber, Insulating paint
1.5 Fitting Type: Ball ,Socket ,Tongue ,Clevis, Eye type ,Y type and screw.
2.TID polymer Insulator Character:
2.1 We adopt the advanced injection producing technology for housing and the
design of the shed adopt unique aerodynamics principle.
2.2 We use HTV silicone rubber which hydrophobicity can reach to HC1 level
and thickness of the housing is more than 3mm .
2.3 We use ECR rod as the core which is high acid resistant.
2.4 We use hot dip Galvanizing steel fitting,the thickness of the zinc more
than 86μm.
2.5 We adopt the advance fitting crimping producing technology .
2.6 We adopt the unique notch design of the sealing of metal fitting, all
the notch thickness keep the same which avoid the sharp end discharge.
2.7 We use HTV instead of the RTV seal the interface between the fitting
and rod.
3.Drawing
Dear client
Thanks a lot for your interested in our products!
If you have any question, please kindly contact me any time, we will work and respond ASAP.
With our rich experience for exporting goods to our foreign clients, we will do our best to supply the strict design, perfect products, competitive price as well as good after-sale service to satisfy you!
