Outdoor 1 pair subscriber connector unit dp box for STB module with over voltage protection

    Service & Certificate

    Descriptions

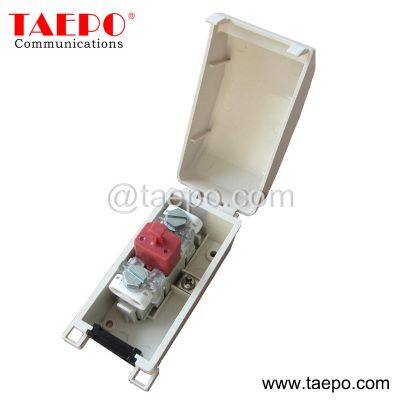

Outdoor 1 pair subscriber connector unit (TP-1710-1MG) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.

The STB module also called VX connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.

It is equipped with GDT (Gas Discharge Tube) arrester in side the plug-in module, which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage and over current, for mainly as follows:

• The surge voltage caused by lightning on or around the outside lines.

• The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.

• The outside line directly collides against a 220 V power line.


It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.

    Main Features

• Insulation Displacement Connection

• No wire-stripping, screw and solder free

• Reliable connections

• Clear labeling

• Modular design and installations

• Gas tight connection

• One push wire insertion

• Robust long-term environmental stability

• Flexible indoor and outdoor use

• Wall or pole mountable

• Quick mounting and installation
