automatic 5 gallon water filling machine
- Shanghai
- T/T
You May Like
Product Details
Condition | New | Application | Beverage, Food | |
Packaging Type | Barrel, Bottles | Packaging Material | Glass, Plastic | |
Automatic Grade | Automatic | Driven Type | Electric | |
Voltage | 380V, 380V 50Hz | Power | 3.8kw | |
Place of Origin | Jiangsu, China | Brand Name | HS | |
Model Number | QGF | Dimension(L*W*H) | 2500*1700*2200(mm) | |
Weight | 1700KG, 1500kg | Certification | ISO CE | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
5 Gallons Water Filling Machine

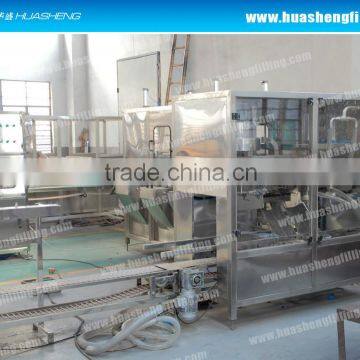

WORKSHOP
Feature
The 5 gallons bottled water filling machine is designed for producing 5 gallon barrel drinking water. There are 8 kinds of machines which can produce 60, 100, 150, 300, 450, 900, 1200 and 2000 5 gallon barrel drinking water per hour. Every machine is consisted of rinser, filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant rinsing. The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The whole production line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output.
Technique Parameter
Model | QGF 100 | QGF 150 | QGF 300 | QGF 450 | QGF 600 | QGF 900 | QGF 1200 |
Filling volume (L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Bottle specification (mm) | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
Capacity | 100 | 150 | 300 | 450 | 600 | 900 | 1200 |
Air pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
Air consumption (m³/min ) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
Power (kW) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
Rated voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Dimensions (L*W*H) (mm) | 3485*700*1550 | 4685*1420*1700 | 5130*2500*2220 | 6600*3500*2170 | 6600*3500*2170 | 6600*5000*2170 | 2800*2400*2700 |
Weight (kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
The sample service
we can send you the video of the running machine
you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information,you can go to visit their factory.
Customized service
we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
we will provide the bill of load on time to make sure you can get the machine quickly
when you finish the Preparation conditions ,our engineer will go to your factory to install the machine , and give you the operating manual ,and train your employee until they can operate the machine well.
we provide one year warranty with spare parts free.
Q1: Are you a trading company or a manufacturer? A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
