Home > Products > Water filling machine > 5 Gallon Water Bottle Filling systems
5 Gallon Water Bottle Filling systems
US$ 30,000 - 100,000
/ Set
1 Set(Min. Order)
- Shanghai Port
- T/T
You May Like
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Barrel | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V/50HZ | Power | 1.38~13.5KW, 1.38-13.5kw | |
| Place of Origin | Jiangsu, China | Brand Name | HS-filling | |
| Model Number | QGF Series | Dimension(L*W*H) | - | |
| Weight | 680~4500KGS | Certification | CE,ISO,SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1- 5 Gallon Water Bottle Filling systems2- Capacity: 100-1200 Barrels/Hour
3- Filling Head: 1-8
4- Filling Volume:18.9L

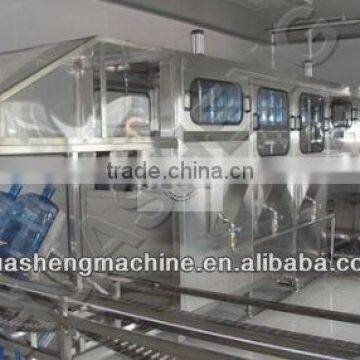

Automatic 5 Gallon Water Bottle Filling systems
We supply the Complete Line:
1- Automatic De-capper Machine ( Remove the lids)
2- Automatic Brusher (Cleaning barrel external)
3- Autmaitc 5 Gallon Water Rinsing-Filling-Capping 3 in 1 Machine
4- Lamp Inspection
5- Film Shrink Machine with Steam Generator ( Sealing the Barrel Neck)
Main Technology Parameters:
| Model | QGF-100 | QGF-200 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling head | 1 | 2 | 2-3 | 3 | 5 | 8 | 8 |
| Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size(mm) | Φ270-Φ490 | Φ270-Φ490 | Φ270-Φ490 | Φ270-Φ490 | Φ270-Φ490 | Φ270-Φ490 | Φ270-Φ490 |
| Capacity(b/h) | 100 | 200 | 300 | 450 | 600 | 900 | 1200 |
| Gas Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Motor Power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Gas Consumption(m3/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Voltage | 380v/50Hz | 380v/50Hz | 380/50Hz | 380v/50Hz | 380v/50Hz | 380v/50Hz | 380v/50Hz |
| Weight(kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
600BPH 5 Gallon Water Bottle Filling Line:
