Linear cream filling machine
- Shanghai Port
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | HS-filling | Model Number | TP | |
| Type | Other, Filling Line | Voltage | Customized | |
| Power(W) | 3.5KW | Weight | 450KGS | |
| Dimension(L*W*H) | Customized | Certification | CE,ISO,SGS | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1-Automaitc Linear cream filling machine2-Kinds of Glass Bottle/Glass Jar
3-Capacity: 1000-6000BPH(350g)

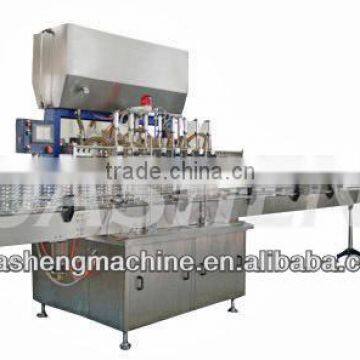

Automatic cream filling machine
1- Brief:
Automatic linear type filling machine, transport on single/double line. To meet production requirement, the number of heads is optional customized, avoid fast damaging machine. This kind of filling machine adopts SUS304 volumetric plunger/piston type metering pump to filling, in order to make exact filling volume in high speed. It applies to liquid jam (with or without particles/pulps), like hot pepper, ketchup, chocolate jam and so on.
2- Main Parts:
(1)Rack (2)Filling head (3)Filling vat (4) Conveyor (5) Bottle blocking equipment (6)Photoelectrical detector (7)Motor (8)Reducer (9) Chain (10) Drive organ (11) Transfer line etc.
3- Main Technology Parameters:
Model | TP-4 | TP-6 | TP-8 | TP-10 | TP-12 | TP-16 |
Capacity(BPH-350g) | 1000-2000 | 2000-2800 | 2500-3200 | 3000-3800 | 3500-4200 | 5000-6000 |
Filling Liquid | Ketchup, Peanut Butter, Tomato Sauce, Chocolate Jam, Chili Paste and other thick pastes. | |||||
Applicable Bottle | Various Shapes Glass Bottle, Glass Jar | |||||
Bottle Volume | 20-2000ml | |||||
Bottle Diameter | ¢20-¢150mm | |||||
Cap Size | ¢20-¢70mm | |||||
Filling Accuracy | ±1% | |||||
Capping Yield | >99% | |||||
Speed Control | Frequency Control | |||||
Air Source | 0.4-0.6Mpa | |||||
Total Power | 3.5kw | 3.6kw | 3.8 kw | 4.0kw | 4.2kw | 4.5kw |
Power Supply | According to customer’s requirements. | |||||
