Automatic Unscramble Bottle Machine

Specifications

  automatic unscramble bottle machine

Parameter:

Working lacation: 16

Max Output capacity: 8000BPH

Air supply pressure: 0.7MPa

Air consumption: 1.5M3/ min

Adaptive bottle: dia.50-90, height165-290

Motor power: 2KW

Auto empty bottle lifter power: 0.75KW

External dimension: Φ1860×2060

Main Weight: 2500kg

Machine features:

1) Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur 2) Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency

3) The bottles are neck locked through the air conveyor so as to avoid overturn in delivery

4) Dilapidated bottles will be eliminated by a special device

5) A lock detector is equipped for alarming; when locked, the machine will automatically stop

6) A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles

7) An oil pump will readily fill up the gears, bearings and the cams 8) Maintenance doors and mould replacement door provided 9) Mitsubishi, Omron and Sie

mens provide the main electrical components; such as transducers, PLC, photoelectric switch and relay

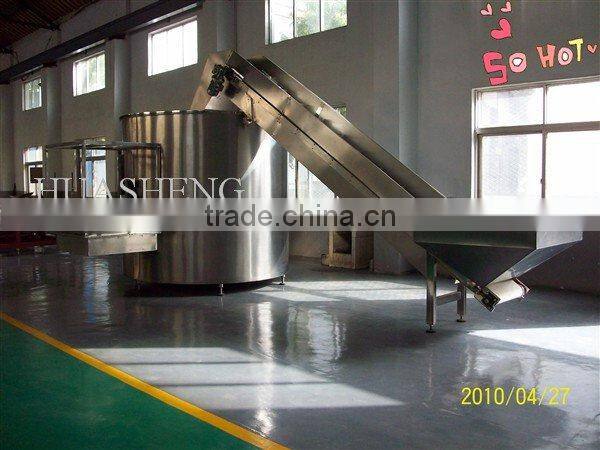

 Our unscramble bottle machine pictures

Before sales:  the buyer must cooperate with us with patience, and provide us all needed informations, these information is very important, because the final solution based on these informations.

During build:  we will update the manufacturing process and status to buyers, and we will invite buyer come to test the machine when it finished in our factory, if the buyer think it is ok, we will arrange shipping; or we can take the testing video and send to buyer, the purpose is that the buyer?can inspect the machine but without travelling.

After sales: We will send technicians to buys factory for installation, commissioning, and operator training; Our warranty period is 12 months, in this period, we provide free parts for buyer as well as the necessary technical support.Out of warranty period, we offer free technical support, and the cost price of spare parts

   Huasheng beverage machinery Co., Ltd. was established in 1994, It's a professional manufacturer of liquid food and beverage equipment. They have good experience especially in filling and capping technology.and they provide customized service and turnkey project.They have 300+ users in and out of China, and now 30% order from regular customer. The products scope as below: PET bottle water filling machine,Glass bottle filling machine,Capping machine,Bottle washing machine,Water treatment,Oil filling machine/piston filler,Other bottle filling machine,Labeling machine, wrap packing machine,bottle unscrambler,and some drinks production line auxiliary.
