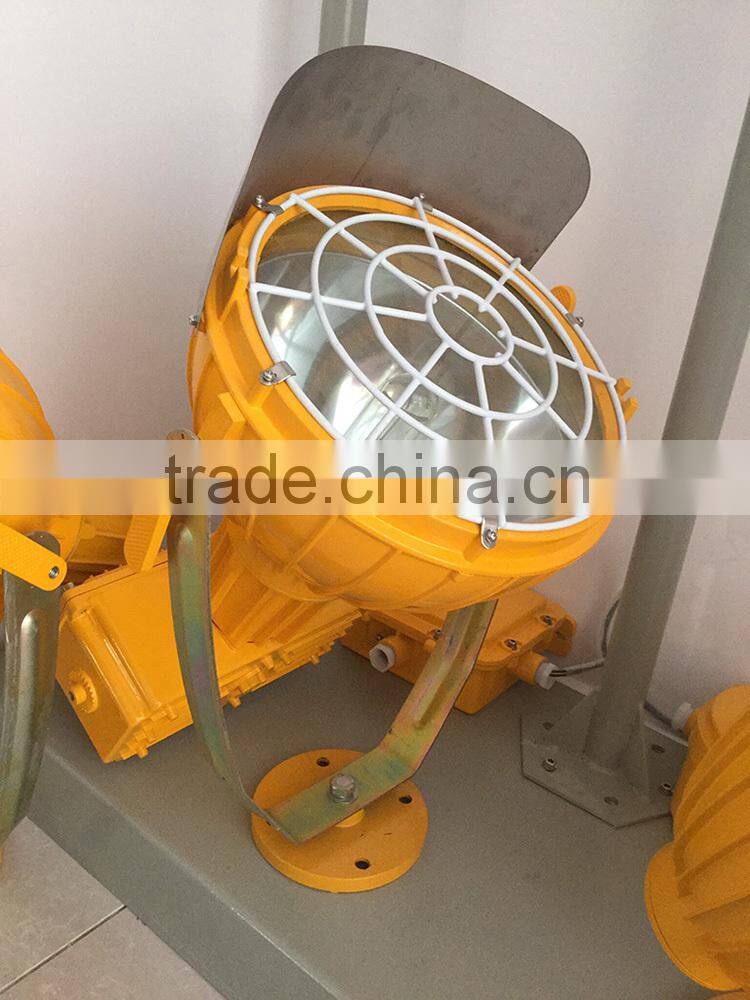

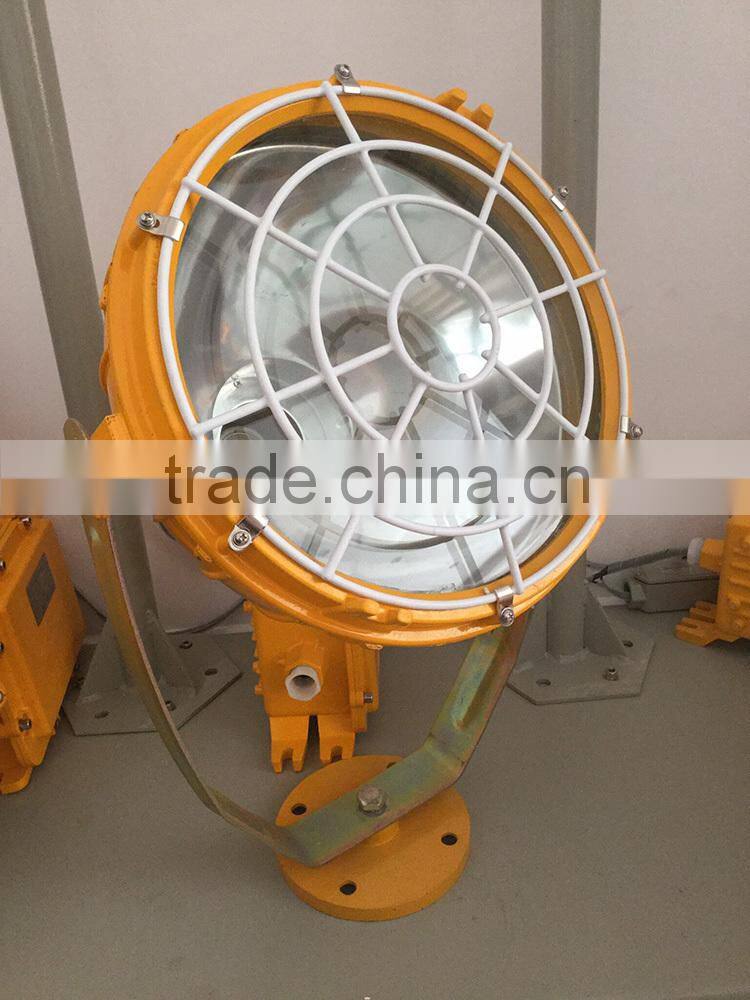

BAT51 Explosion Proof Flast Desk Lamp ex Project Lamp for Horizontal 360 Rotary

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
• Can be used in the environment of  temperature group for T1~T4.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

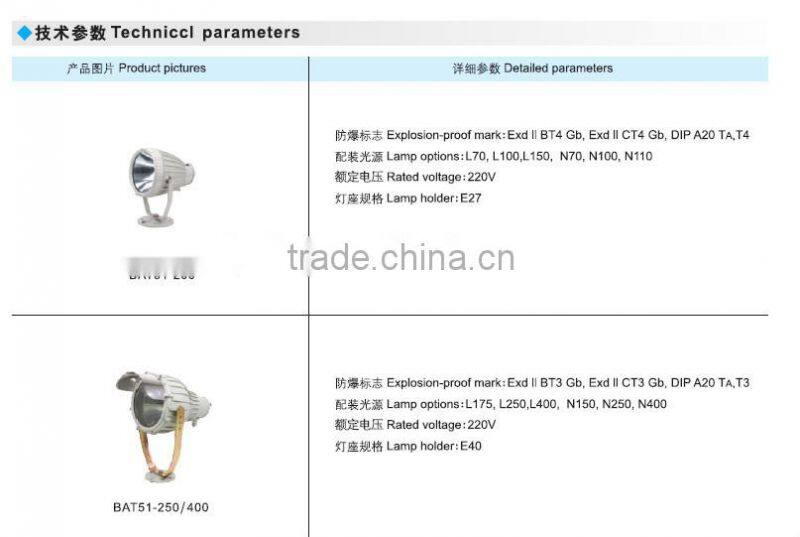

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1,IEC60079-0,  IEC60079-1,  IEC60079-7,  IEC61241-1,  EN60079-0, EN60079-1, EN60079-7, EN61241-1
• Ex-proof Mark:Exd II BT3 Gb, Exd II CT3 Gb, DIP A21 TA, T3.
• Rated voltage: AC220V
• Protection grade: IP65, IP66
• Corrosion-proof grade:WF1, WF2
• Inlet Thread: G3/4"
• Cable outer dia:9mm~14mm

Product Features:

• Aluminium alloy Enclosure,high-pressure electrostatic powder coated after shot plastic.
• High impact resistance tempered glass cover.
• Seal gasket is made of heat resistant and anti-aging silicone rubber, with good features of water and dust proof.
• Horizontal 360° rotary, elevation+90°~ -60° adjustable.
• High purity aluminum reflector, anodic oxidation surface, leads to high reflecting efficiency.
• Long cast distance, over 150m.
• Cable connection.
