explosion proof flameproof light fitting floodlight

 explosion proof flameproof light fitting floodlight

Youtube Video : /watch?v=0Ysw2yJTUQ4&feature=youtu.be

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category II B and II C where the temperature classification is T1-T4.

3. Hazardous zone : 20. 21. and 22

4. Flammable dust atmosphere.

5. widely used in the fields of oil, chemical industry , spaceflight ,war industry and so on.

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
• Can be used in the environment of  temperature group for T1~T4.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

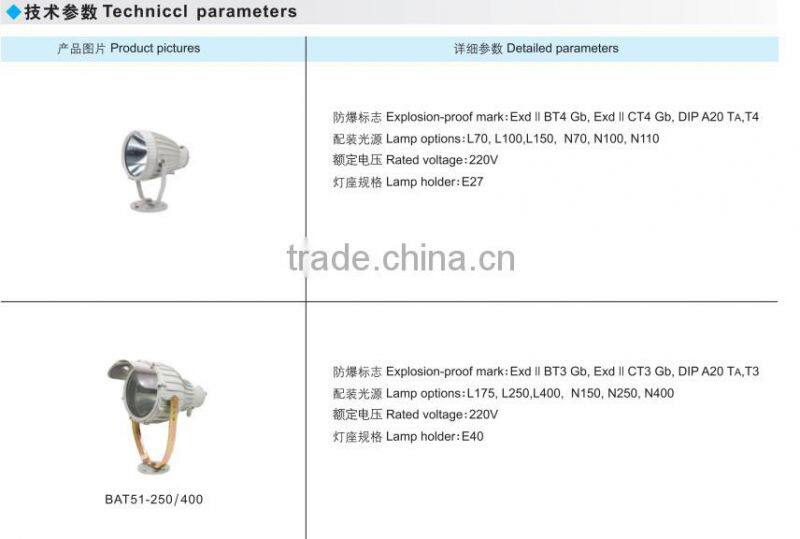

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1,IEC60079-0,  IEC60079-1,  IEC60079-7,  IEC61241-1,  EN60079-0, EN60079-1, EN60079-7, EN61241-1
• Ex-proof Mark:Exd II BT3 Gb, Exd II CT3 Gb, DIP A21 TA, T3.
• Rated voltage: AC220V
• Protection grade: IP65, IP66
• Corrosion-proof grade:WF1, WF2
• Inlet Thread: G³/₄"
• Cable outer dia:9mm~14mm

Product Features:

• Aluminium alloy Enclosure,high-pressure electrostatic powder coated after shot plastic.
• High impact resistance tempered glass cover.
• Seal gasket is made of heat resistant and anti-aging silicone rubber, with good features of water and dust proof.
• Horizontal 360° rotary, elevation+90°~ -60° adjustable.
• High purity aluminum reflector, anodic oxidation surface, leads to high reflecting efficiency.
• Long cast distance, over 150m.
• Cable connection.

Welcome to visit FPFB online marketing display.

To serve you in a better and efficient way, please browse our products  and contact us with following information.

1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?

2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.

3. Your preference on light source, power and installation methods etc.

We will offer our best products and prices according to your actual demand.

Sincerely yours,

FPFB sales team.
